Cylinder head Fast Arrow Power CNC 180cc black – Gilera / Piaggio / Italjet 125–180cc 2T LC

Description

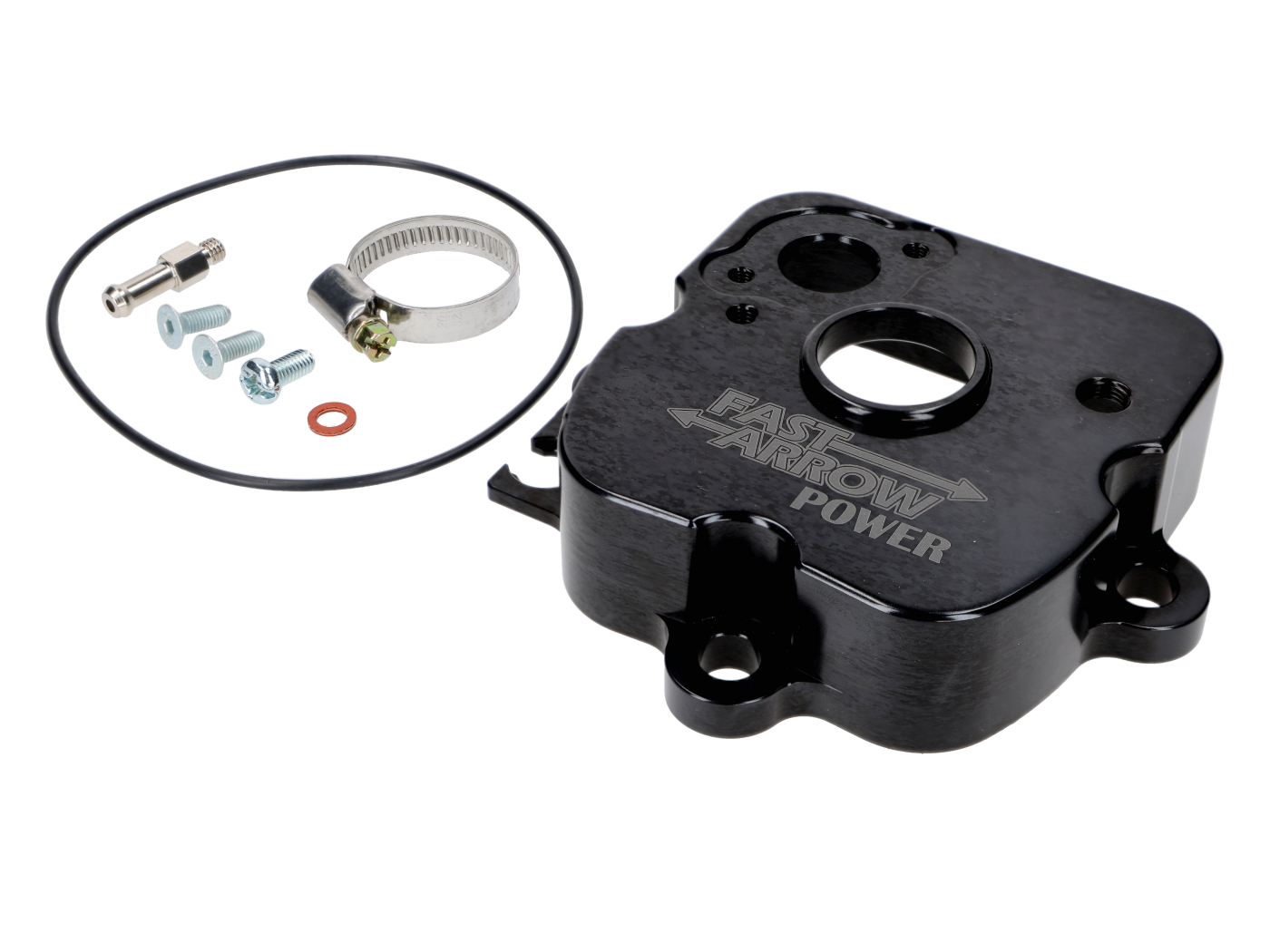

Fast Arrow Power CNC is an outer head or cylinder head cover, made from CNC-machined aluminum and intended for liquid-cooled Piaggio / Gilera / Italjet 125–180cc 2T LC engines.

It is the outer part of the head that is used together with a separate inner combustion chamber (dome). It is suitable for replacing the original part, rebuilding the engine or tuning modifications.

The CNC-machined aluminum construction ensures precise manufacturing and good mechanical strength, while the black finish with the Fast Arrow Power logo also gives the engine a sporty appearance.

Technical specifications

• Manufacturer: Fast Arrow Power
• Type: outer head / cylinder head cover
• Manufacturing: CNC machined
• Material: aluminum
• Color: black
• Engine: 2-stroke
• Cooling: LC – liquid-cooled
• Displacement: 125–180cc
• For versions with a separate inner combustion chamber
• Coolant connection or 45° thermostat adapter is not included

Set includes

• 1x CNC outer head / cylinder head cover
• 1x O-ring seal
• 1x hose clamp
• 1x connector / bleed screw
• Mounting bolts
• Sealing washer

Suitable for

Gilera

• Runner FX 125cc 2T LC
• Runner FXR 180cc 2T LC
• Runner FXR / SP 180cc 2T LC

Piaggio

• Hexagon 125cc 2T – EXS1T
• Hexagon 150cc 2T – EXV1T
• Hexagon 180cc 2T GTX

Italjet

• Dragster 125cc 2T LC
• Dragster 180cc 2T LC

Note

The product represents the outer part of the cylinder head and is used with a separate inner combustion chamber. The inner combustion chamber is not listed as part of the set.

During installation, the sealing surfaces must be thoroughly cleaned, the O-ring and sealing elements must be correctly installed, and after assembly the cooling system must be properly filled and thoroughly bled.
