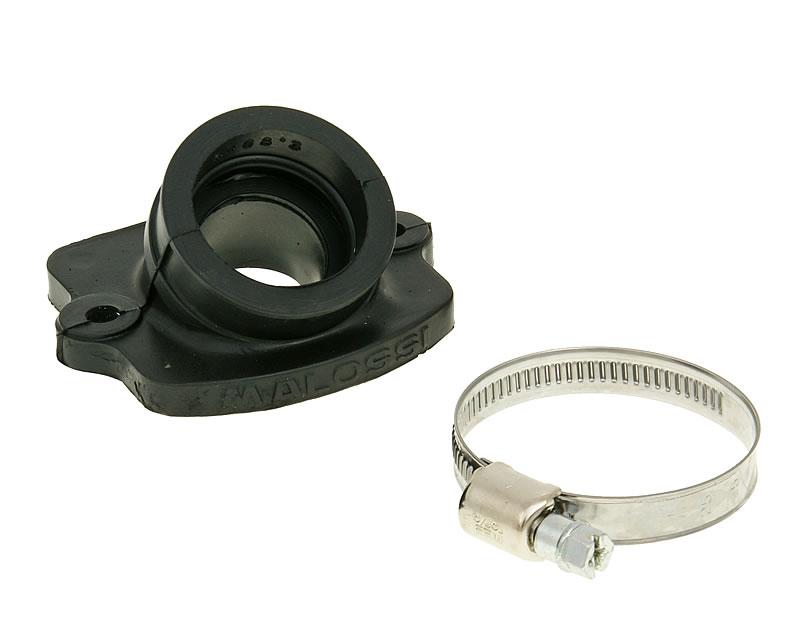

Intake manifold Malossi MHR FKM 25 mm – PHBL – Gilera / Piaggio 180cc 2T

Description

Sport Malossi MHR intake manifold is intended for modified Gilera and Piaggio 180cc 2T engines and use with Dell’Orto PHBL carburetors.

The short intake manifold design provides a shorter intake path and is primarily intended for Racing configurations where good mixture flow and engine response at higher RPM are important.

It is made from high-quality FKM material, which provides better resistance to fuel, solvents, and high temperatures compared to conventional NBR rubber.

Technical specifications

• Manufacturer: Malossi

• Series: MHR

• Type: sport intake manifold

• For carburetors: Dell’Orto PHBL

• Carburetor size: up to 25 mm

• Inner connection diameter: Ø30 mm

• Outer connection diameter: Ø36 mm

• Material: FKM – fluoroelastomer

• Short intake path

• Purpose: Racing / tuning

FKM version

FKM is a fluoroelastomer with high resistance to:

• fuel and its additives,

• more aggressive components of modern fuels,

• higher temperatures,

• material aging and wear.

FKM is therefore a more durable choice than conventional NBR rubber intake manifolds, especially for heavily modified engines.

Suitable for

• Gilera 180cc 2T

• Piaggio 180cc 2T

• Racing configurations with a Dell’Orto PHBL carburetor

• Carburetors up to approximately 25 mm

Note

Before ordering, check the carburetor connection dimensions. The intake manifold has an inner diameter of Ø30 mm and an outer diameter of Ø36 mm and is intended for compatible PHBL configurations.
