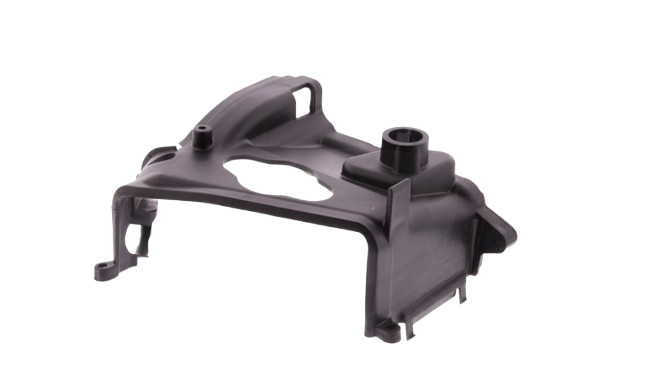

Upper cylinder cover black – Piaggio 50–100cc 4T 2V E2–E3

Description

Replacement upper cylinder cover is intended for air-cooled Piaggio 50–100cc 4T engines. The cover is part of the forced air cooling system and ensures correct direction of cooling air around the cylinder and cylinder head.

It is suitable for replacing a damaged, cracked or missing original cover.

Technical specifications

• Type: upper cylinder cover
• Position: upper
• Colour: black
• For engines: Piaggio 50–100cc 4T
• Cooling: AIR – air-cooled
• Emission versions: E2 / E3
• Replacement version
• Quantity: 1 piece

Suitable for

Aprilia

• Scarabeo 100 RST AIR 4T E3 – 2014 – Piaggio engine
• Scarabeo 50 AIR 4T 2V E2 – 2002–2006 – Piaggio engine
• Scarabeo 50 RST AIR 4T 2V E2 – 2006–2009 – Piaggio engine
• Sport City 50 One AIR 4T 2V E2 – 2008–2010

Derbi

• Atlantis 50 AIR 4T 2V E2 – 2004–2007 – Piaggio engine
• Boulevard 100 AIR 4T E3 – 2010–2011 – Piaggio engine
• Boulevard 25 km/h AIR 4T 2V E2 – 2009 – Piaggio engine
• Boulevard 50 AIR 4T 2V E2 – 2009 – Piaggio engine

Piaggio

• Fly 100 AIR 4T 2V E2 – 2006–2007
• Fly 100 AIR 4T 2V E2 – 2008–2014
• Fly 25 km/h AIR 4T 2V E2 – 2008–2011
• Fly 50 AIR 4T 2V E2 – 2004–2006
• Fly 50 AIR 4T 2V E2 – 2007–2009
• Fly II 25 km/h AIR 4T 2V E2 – 2012–2017
• Fly II 50 AIR 4T 2V E2 – 2013–2015
• Fly II 50 AIR 4T 4V E2 – 2012–2017
• Liberty 100 AIR 4T 2V E3 – 2011–2014
• Liberty 50 AIR 4T 2V E1 – 2002–2003 – MY2003 / Euro 2 version
• Liberty Delivery 50 AIR 4T 2V E2 – 2005–2006
• Liberty Delivery 50 AIR 4T 2V E2 – 2006–2017
• Liberty MOC 50 AIR 4T 2V E2 – 2009–2016
• Liberty RST 50 AIR 4T 2V E2 – 2004–2005
• Liberty RST 50 AIR 4T 2V E2 – 2005–2008
• Liberty Sport 50 AIR 4T 2V E2 – 2006–2008
• Zip II 100 AIR 4T 2V E2 – 2006–2010
• Zip II 100 AIR 4T 2V E3 – 2011–2021
• Zip II 25 km/h AIR 4T 2V E2 – 2006–2016
• Zip II 50 AIR 4T 2V E1 – 2000–2005 – MY2004–2005 / Euro 2 version
• Zip II 50 AIR 4T 2V E2 – 2006–2017

Vespa

• ET4 50 AIR 4T 2V E1 – 2000–2004 – MY2004 / Euro 2 version
• LX 25 km/h AIR 4T 2V E2 – 2010–2012
• LX 50 AIR 4T 2V E2 – 2005–2009
• LX 50 AIR 4T 4V E3 – 2009–2013
• LX Touring 25 km/h AIR 4T 2V E2 – 2011–2012
• LXV 25 km/h AIR 4T 2V E2 – 2012–2013
• Primavera 25 km/h AIR 4T 2V E2 – 2014–2017
• S College 25 km/h AIR 4T 2V E2 – 2010–2012
• Sprint 25 km/h AIR 4T 2V E2 – 2014–2017

Note

The compatibility list also includes individual 4V versions, so before ordering, we recommend comparing the shape of the cover and mounting points with the original part on the vehicle.
