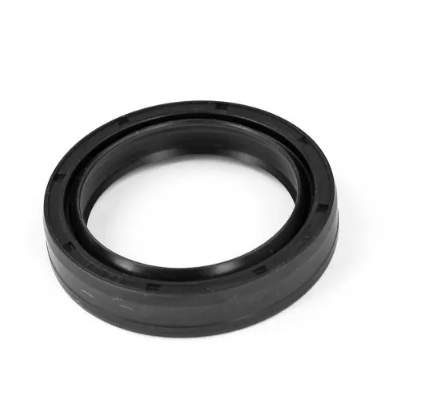

Front fork oil seal 40x52x10/10.5 mm TC4L – Aprilia / Derbi / Ducati / KTM / Piaggio / Rieju / Beta / HM

Description

Replacement front fork oil seal with dimensions 40 x 52 x 10/10.5 mm is intended for numerous scooters, mopeds and motorcycles from various manufacturers. It is suitable for servicing or rebuilding the front forks and replacing a worn or damaged original oil seal.

It is also used on certain Marzocchi, KYB and Showa fork versions, so it is recommended to check the dimensions of the original oil seal before ordering.

Technical specifications

• Type: front fork oil seal
• Dimensions: 40 x 52 x 10/10.5 mm
• Version: TC4L
• Inner diameter: Ø40 mm
• Outer diameter: Ø52 mm
• Height: 10 / 10.5 mm

Suitable for

Aprilia

• SR 50 Factory – 2006–2013
• Tuareg Rally 50 – 1990–1992
• AF1 125 Europa / Futura – 1990–1992
• AF1 125 Replica / Sintesi – 1990–1991
• Pegaso 125 – 1991–1994
• RS 125 Extrema / Replica – 1992–1999
• RX 125 – 2008–2013
• Tuareg 125 Rally – 1985–1992
• RS 250 – 1995–1997
• ETX 350 Tuareg Wind – 1986–1987
• Atlantic 400 Sprint – KYB forks – 2005–2007
• Atlantic 400 Sprint – Marzocchi forks – 2005–2007
• Atlantic 400 Sprint – Showa forks – 2005–2007
• Atlantic 500 – 2002–2004
• Scarabeo 500 – 2003–2006
• Scarabeo 500 ABS – 2005–2006
• Scarabeo 500 i.e. – 2006
• Scarabeo 500 i.e. ABS – 2006
• Moto 6.5 650 Starck – 1995–1999
• Pegaso 650 – 1992–1998

Cagiva

• Supercity 125 – 1991–2001
• WMX 250 – 1984–1991
• T4 350 E – 1987–1991
• T4 350 R – 1987–1991
• T4 500 E – 1987–1988
• T4 500 R – 1987–1988

Derbi

• GPR 50 Nude D50B0 – 2006–2008
• GPR 50 Racing EBS050 – 2004–2005
• Senda 50 R DRD Pro – 2005–2011
• Senda 50 R DRD Racing – 2004–2013
• Senda 50 SM DRD Evo – 2008–2009
• Senda 50 SM DRD Pro – 2005–2011
• Senda 50 SM DRD Racing – 2004–2013
• Senda 50 SM DRD Racing – 2017–2019
• Senda 50 SM Racing – 2018–2021
• GPR 125 Racing 2T – 2005–2008

Ducati

• Indiana 650 – 1986–1988
• Indiana 750 – 1987–1988
• Monster 750 – 1996–1997

Gilera

• RC 125 Top Rally – 1989–1993
• RC 600 – 1989–1990

Husqvarna

• SM 125 S – 2000–2009
• WRE 125 – 2000–2009

Kawasaki

• GPZ 1000 RX – 1986–1988

KTM

• GS 125 – 1983–1997
• GS 250 – 1984–1985
• SX 250 – 1994–2013
• EGS 350 LC4 – 1987–1994
• GS 500 – 1983–1986
• SX 500 – 1992–1995

Moto Guzzi

• California 1000 III – 1987–1993
• California 1000 III i.e. – 1990–1993
• S 1000 – 1990–1993
• Strada 1000 – 1993–1994
• V1000 Le Mans – 1985–1992

Additional compatibility

According to the product information, the oil seal is also intended for certain versions of:

• Piaggio X9 500 – 2003–2007
• Derbi GP1 125 / 250 – from 2006 onwards
• Rieju MRT 50 Pro
• Derbi Senda 50 with Marzocchi forks
• Beta RR 50
• HM CRE 50

Note

Depending on the model year and version, different front forks may be used on the same model, so always check the dimensions of the original oil seal or the fork type before ordering. The correct dimensions of this product are 40 x 52 x 10/10.5 mm.
