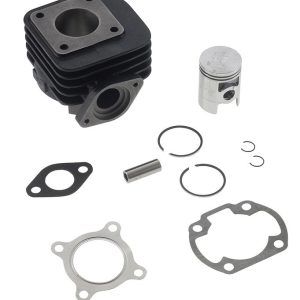

Cylinder Kit WM 60 cc – Honda Dio / Kymco DJ / SYM DD 2T

Description

High-quality WM 60 cc cylinder kit with a 43 mm piston diameter is designed for Honda, Kymco, SYM, and Daelim air-cooled 2-stroke engines. It is an excellent choice as a replacement for a worn original cylinder or as a performance upgrade for a stock 50 cc engine.

The kit includes two sets of piston rings, providing extended service life and reliable sealing. The cylinder uses a 12 mm piston pin.

Technical specifications

• Manufacturer: WM
• Type: performance cylinder kit
• Displacement: approx. 60 cc
• Cylinder bore: 43 mm
• Engine: 2T
• Cooling: air-cooled (AC)
• Piston pin: 12 mm
• Overall height: 91.5 mm
• Height without sleeve: 62.5 mm
• Outer sleeve diameter: 54 mm
• Diagonal mounting hole spacing: 68 mm
• Exhaust flange mounting hole spacing: 54 mm
• Exhaust flange bolt thread: M6
• Includes 2 sets of piston rings

Fits

Daelim

• Cordi 50 Air 2T (2005)
• Message 50 Air 2T (1998)
• Tapo 50

Honda (vertical cylinder)

• Dio 50 Air 2T (1988–1992)
• Dio Fit 50 Air 2T (1990–1993)
• Dio G / GP 50 Air 2T (1989–1990)
• Dio SR 50 Air 2T (1990–1993)
• Dio SR / SP 50 Air 2T (1988–1992)
• Dio ZX / SR / S 50 Air 2T (1990–1993)
• Giorno 50 Air 2T (1992–2000)
• Joker 50 Air 2T (1998–1999)
• Shadow SRX 50 Air 2T (1998–1999)
• Tact 50 Air 2T (1989–1998)
• Tact S 50 Air 2T (1993–2001)

Kymco

• CX 50 Air 2T (1993)
• CX Super 50 Air 2T (1994–1997)
• DJ Refined 50 Air 2T (1993–2006)
• DJ World 50 Air 2T (1995–1997)
• DJ-X 50 Air 2T (1991–1992)
• DJ-Y 50 Air 2T (1993–2006)
• K12 Sport 50 Air 2T (1995–2000)
• KB 50 Air 2T (1995–2000)
• Scout 50 Air 2T (1999–2002)
• ZX 50 Air 2T (1999–2002)
• ZX II 50 Air 2T (2003–2006)
• Fever 50 Air 2T

SYM

• DD 50 Air 2T (2003–2008)
• DD 50 Air 2T (from 2010)
• Flash 50 Air 2T (1996–2000)
• Free 50 Air 2T (1996–2000)
• Pure 50 Air 2T (2003–2008)
• Super Fancy 50 Air 2T (1996–2006)

Advantages

• Increases displacement to approximately 60 cc
• Two sets of piston rings for extended service life
• Improved torque and acceleration
• High-quality construction
• 12 mm piston pin
• Suitable for vertical Honda engines and selected Kymco, SYM, and Daelim models
