Carburetor Arreche 16mm for Peugeot, Kymco, SYM

Description

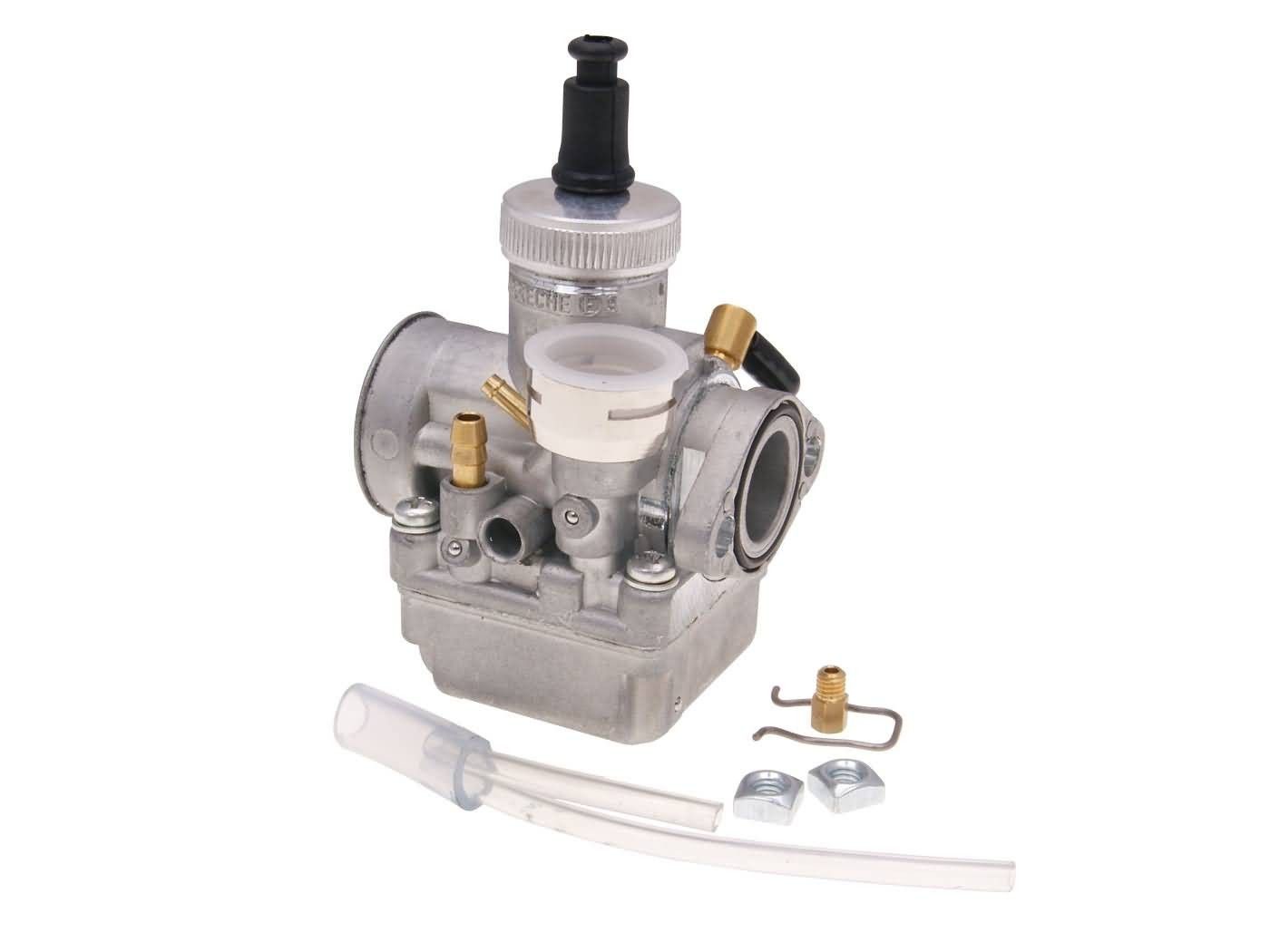

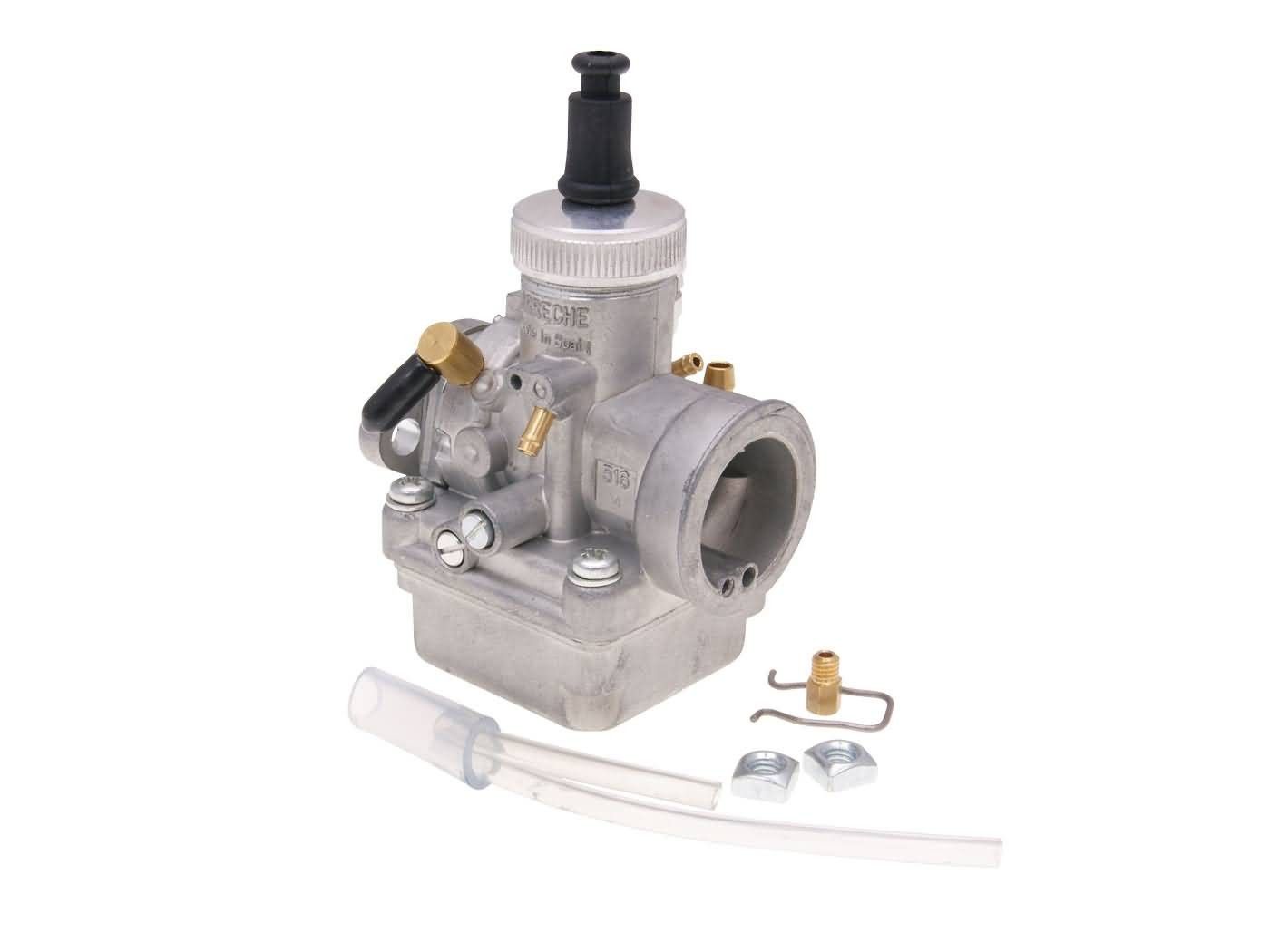

Carburetor Arreche 16mm for Peugeot, Kymco, SYM

Licensed replica of the English Amal carburettor by the Spanish carburettor manufacturer Arreche. The 16mm carburettor is ideal for standard and 50cc tuning cylinders.
Delivery basically tuned with 60 mm main jet + add. 90 main jet and 25 secondary jet. Depending on the tuning level, fine tuning of the spraying/mixture is necessary. Fits on original intake manifold. An additional screw in the bottom of the float chamber allows the main jet to be changed quickly without dismantling the entire float chamber. Due to the compact design of the Amal carburettor, the original air filter box can still be used. The original electric choke can still be used.
Main jet: 60 (installed) and 90 includedSecondary jet: 25Hole spacing intake manifold: 35mmConnection width air filter: 35mm
