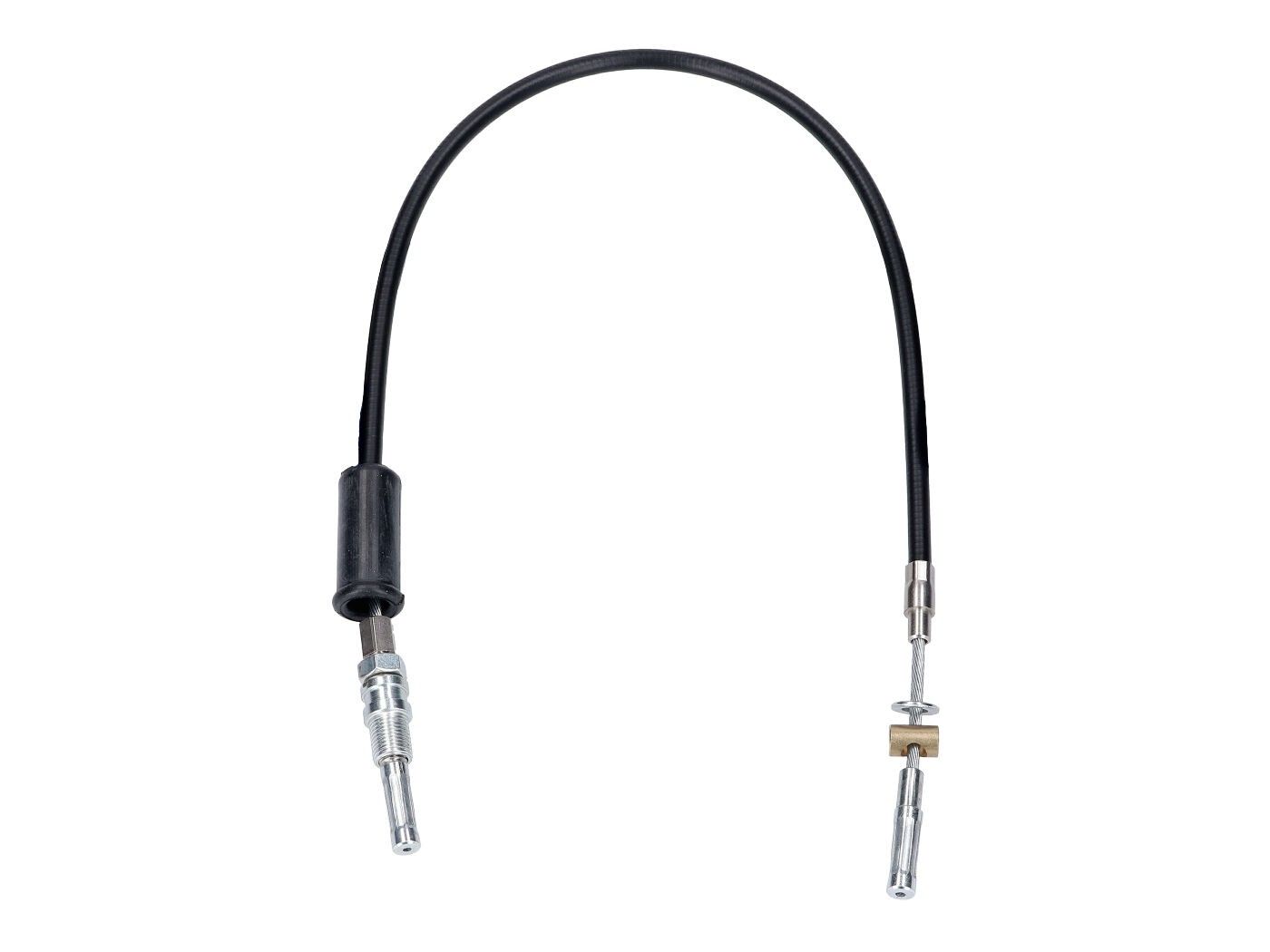

Rear brake cable Schmitt Premium for Puch MS 50, VS 50 Tour

Description

Schmitt Premium cable pulls are manufactured in Austria true to the original: absolutely precise and handcrafted to the highest quality. Fast mechanical manufacturing processes to save costs are deliberately not used here.
The inner cables are made of special cable steel (and not the more brittle stainless steel most commonly used today). That’s why Schmitt Premium cable hoists don’t break as quickly as mass-produced ones.
Schmitt cable pulls for classic vehicles are manufactured in the same design that was standard at the time the vehicles were manufactured. This means that all fans of classic vehicles can always use a cable pull that is true to the original. Since an inner cable manufactured in the old way tends to rust, it is lubricated for life with an Interflon high-performance fluid grease.
OEM number for comparison purposes: 910.8.08.002.2
Dimensions:
Total length: 56cmLength of cover (including caps): 40.5cmWire diameter: 3mmCase diameter: 6mm
Length of end caps: 21.5mmEnd cap diameter: 6-8mm
Length of rubber cap: 39mmRubber cap diameter: 16-18mm outside, 11mm inside

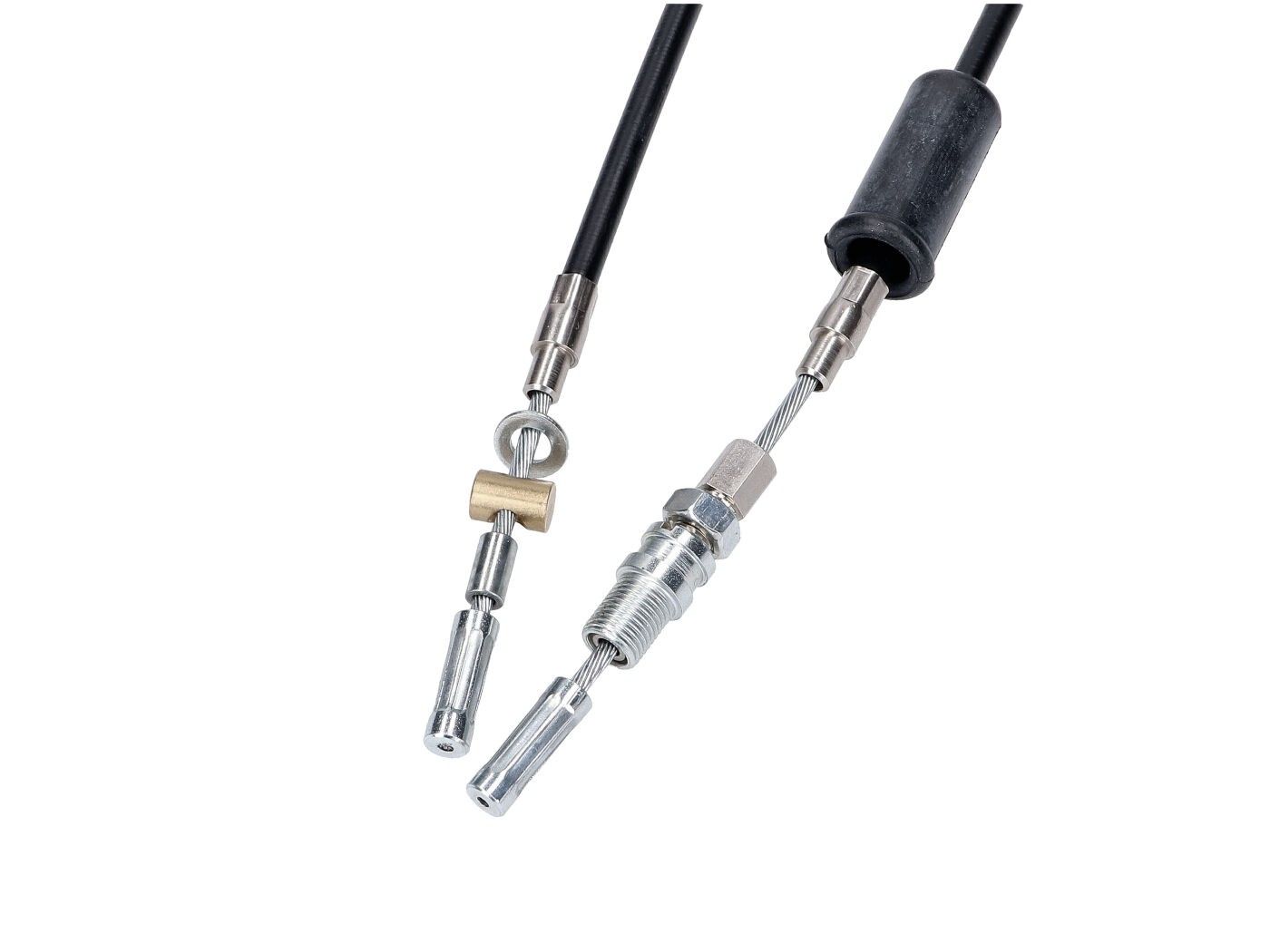

Length of threaded bolt with hexagonal adjustment screw: 40mmThread length: 29mmMother: M7
Length of adjustment sleeve: 21.5mmDiameter: 9.8mm / 10.5mm / 12mmSlot: 1.9mm
Outer diameter washer: 12mmNipple attachment: diameter 8mm, width 12mmSleeve: diameter 6mm, length 10.7mm
