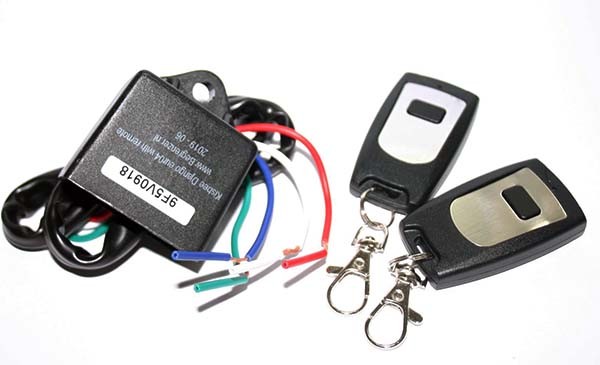

CDI speed converter DMP – for Peugeot Kisbee and Django (EURO 4 / EURO 5)

Description

CDI speed converter DMP – for Peugeot Kisbee and Django (EURO 4 / EURO 5)

With this speed converter, the scooter will reach 55-60km/h (depending on the installed components). The set also includes two remote controls with which you can open the scooter to maximum speed or lock it to the serial number.

Compatible with:

Peugeot Kisbee EURO4 and EURO5 engine – original 45kmh
Peugeot Django EURO 4 and EURO 5 engine – original 45kmh
Also suitable for 25kmh models with EURO4 engine. The converter works on EURO5 models only in open mode.

The speed converter works on the principle of open and limited mode at 25kmh, you switch between the operating modes with the remote control. The scooter reaches its maximum speed, which is around 45-55kmh, with the installation of this converter.

Installation instructions:

Green wire – ground
Cut the black wire from the rear wheel sensor
Blue wire – connect it to the part of the cable that is on the sensor side of the rear wheel
White wire – connect it to the part of the cable that is on the ECU/CDI side
Red wire – 12v power (connect it to battery +)
