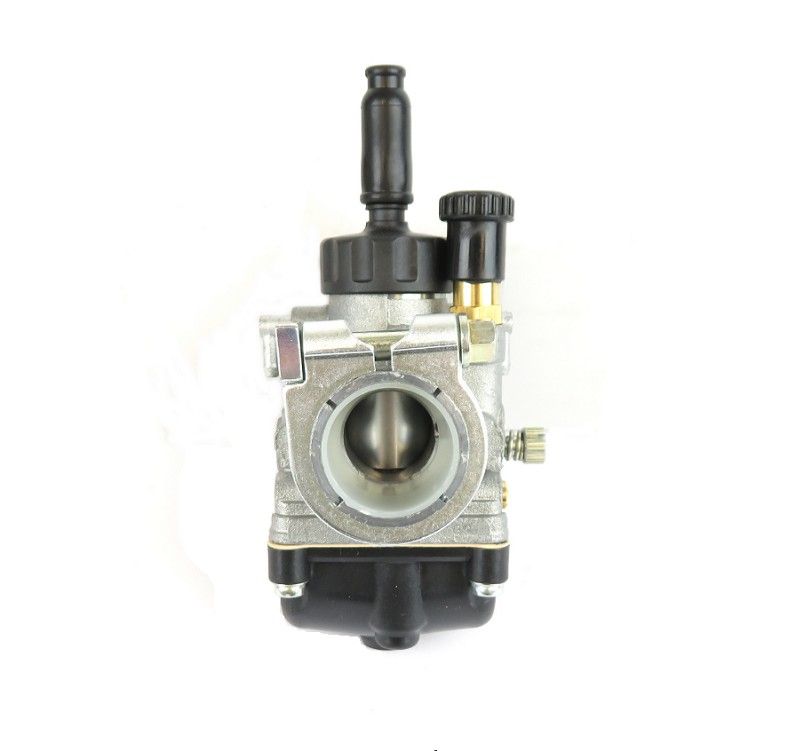

Carburetor Dellorto PHBG 20 AS

Description

M32 x 1.25 threaded air intake connection.
Clamp type engine connection to suit 24-26mm stub.
Lift and twist type choke mechanism fitted, cable type fittings can be fitted if requested.

Standard jetting

40 Slide
W6 needle
90 Main jet
262AN atomiser
50 Idle jet
55 Choke jet
9450.2 Float – 5.0 grams
