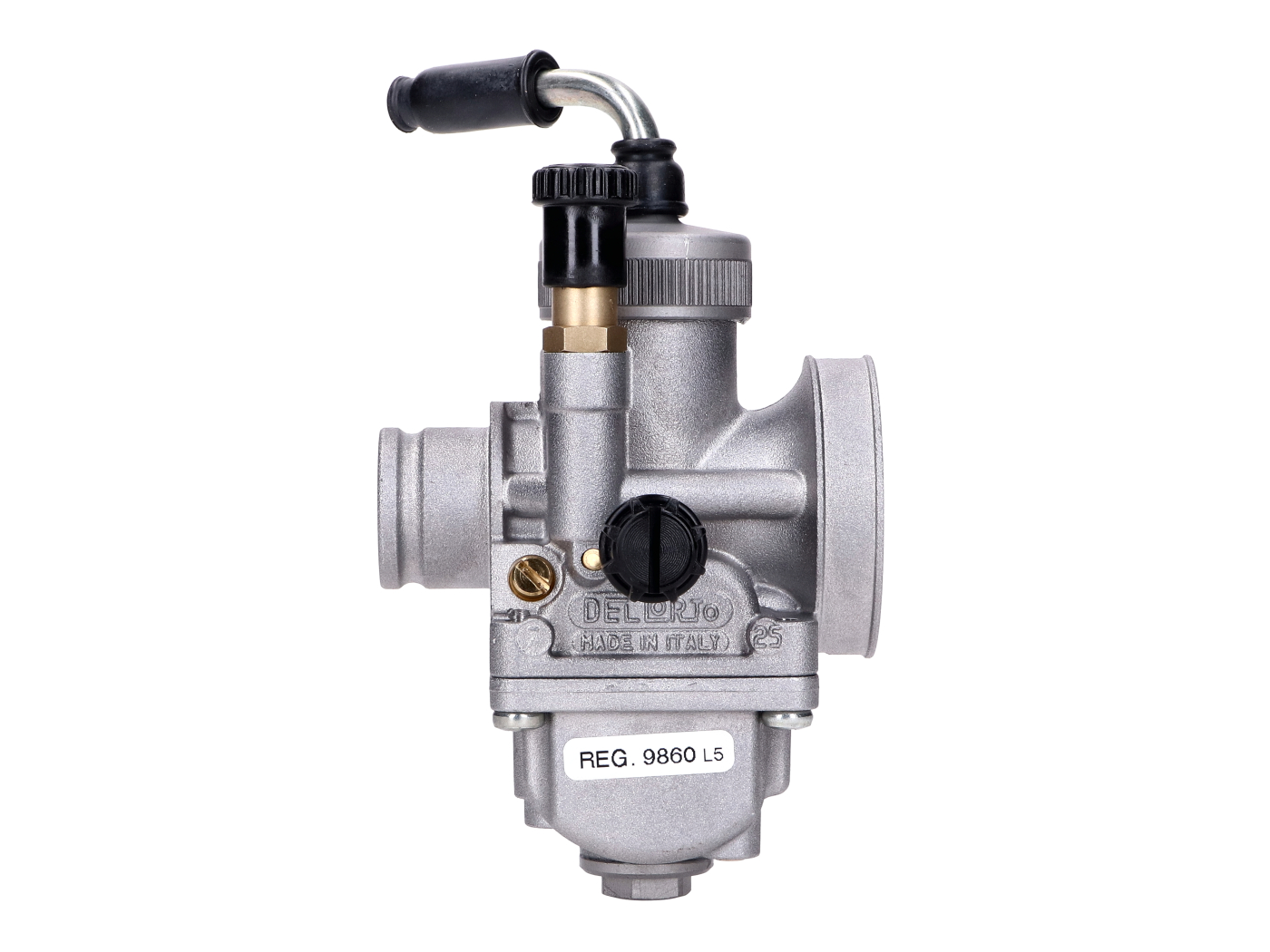

Carburetor Dellorto PHDG 18 AN

Description

Dellorto PHDG Performance carburetor 18 mm

The Dellorto PHDG AN is a compact high-performance carburetor developed specifically for 2-stroke and 4-stroke engines. It combines maximum flow efficiency with precise adjustment options, allowing optimal engine performance across different configurations.

Performance and responsiveness

Optimized flow through the diffuser and a specially designed intake profile ensure maximum airflow and extremely direct throttle response.

Lightweight construction and durability

The body and slide are made from a thermally stable aluminum alloy. A special coating on the slide reduces wear and ensures smooth and reliable operation even under higher loads.

Precise adjustment

A sensitive idle mixture adjustment screw and interchangeable float needle valves (100–225) allow precise adjustment of fuel flow according to engine requirements.

Special features

Anodized components provide a robust racing appearance and additional material protection.

• Carburetor type: Dellorto PHDG
• Operation: 4-stroke
• Diffuser diameter: 18 mm
• Connection diameter: 25 mm
• Connection type: elastic (rubber) mount
• Air filter connection: 46 mm / 60 mm
• Main jet: 78
• Idle jet: 50
• Starter jet: 60
• Air jet: 100
• Needle: W26
• Mixing tube / atomizer: AN 262
• Needle seat: 0.0 mm
• Float needle valve: 150
• Float: 4.0 g
• Throttle slide: 40
• 2T oil pump connection: not available
• Vacuum connection: not available
