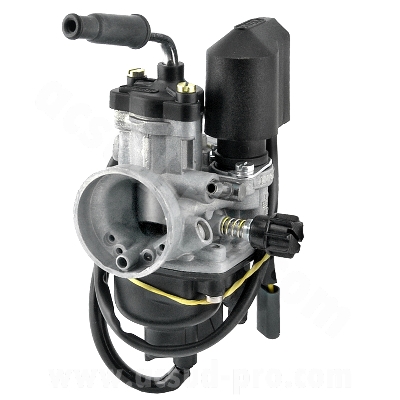

Carburetor Dellorto PHVB 22 CD – automatic chock

Description

If you are looking for a tuning carburetor with an electric choke that is also suitable for everyday use, the Dell’Orto PHVB 22 CD is an excellent choice. It is based on the proven PHVA 17.5 mm model but with a larger 22 mm diameter, allowing higher fuel-air mixture flow and greater top-end power while maintaining the reliability and easy start of the standard series.

It is suitable for modified engines (sport and racing), and in most cases, it can be used with the original air filter housing; minor adjustments may be required for some models. The electric choke (E-Choke) provides easy and reliable cold starts.

Technical specifications – Dell’Orto PHVB 22 CD:

• Type: Dell’Orto PHVB

• Venturi diameter: 22 mm

• Choke: electric (E-Choke)

• Intake manifold connection: 29 mm

• Air filter connection: 41.5 mm

• Slide: 40

• Carburetor needle: M06

• Emulsion tube: GH 212

• Main jet: 6 mm

✔ Reliability and suitability for everyday use
✔ Suitable for tuning and modified 50–125 cc engines
✔ Electric choke for easy starting
