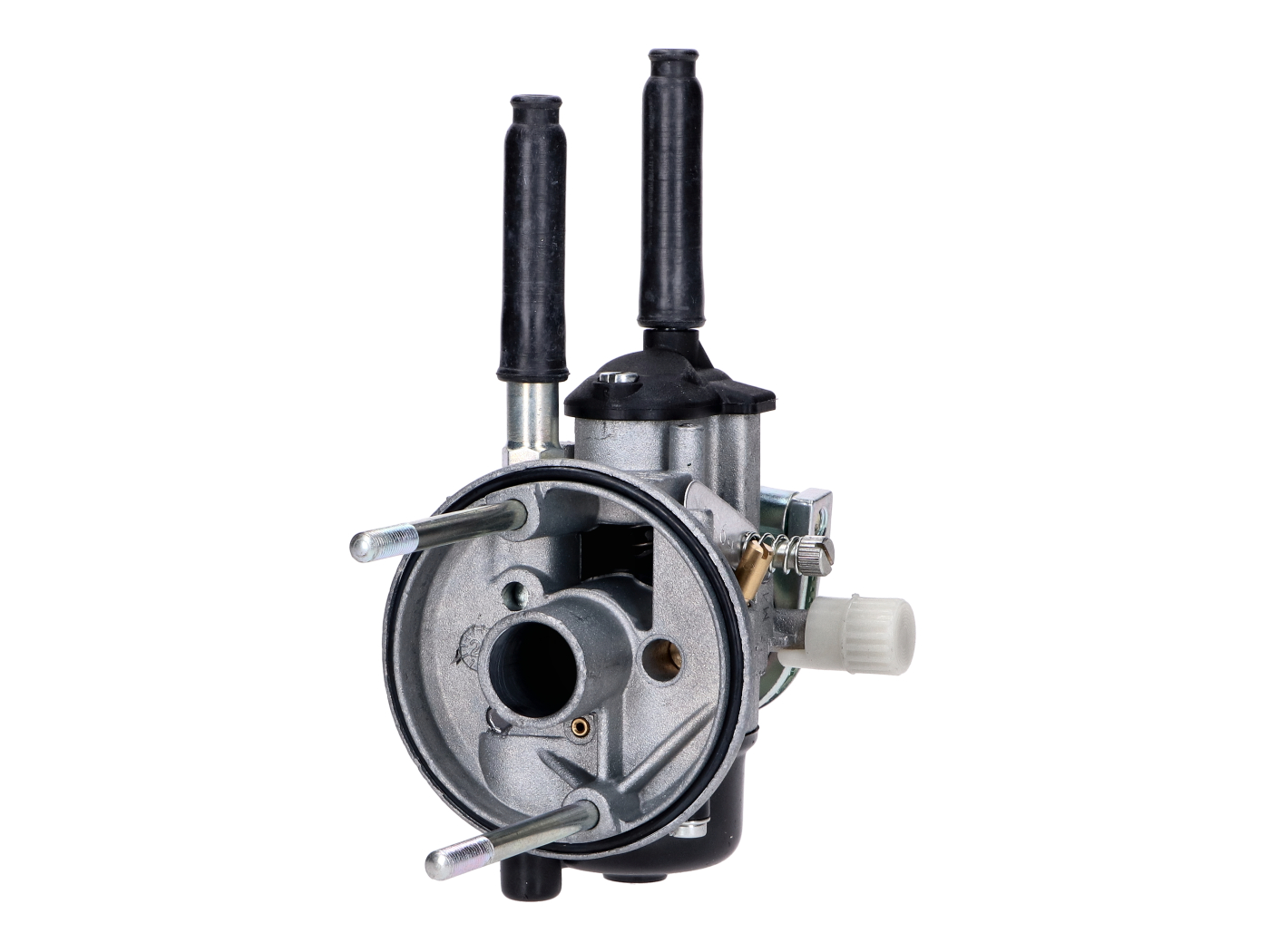

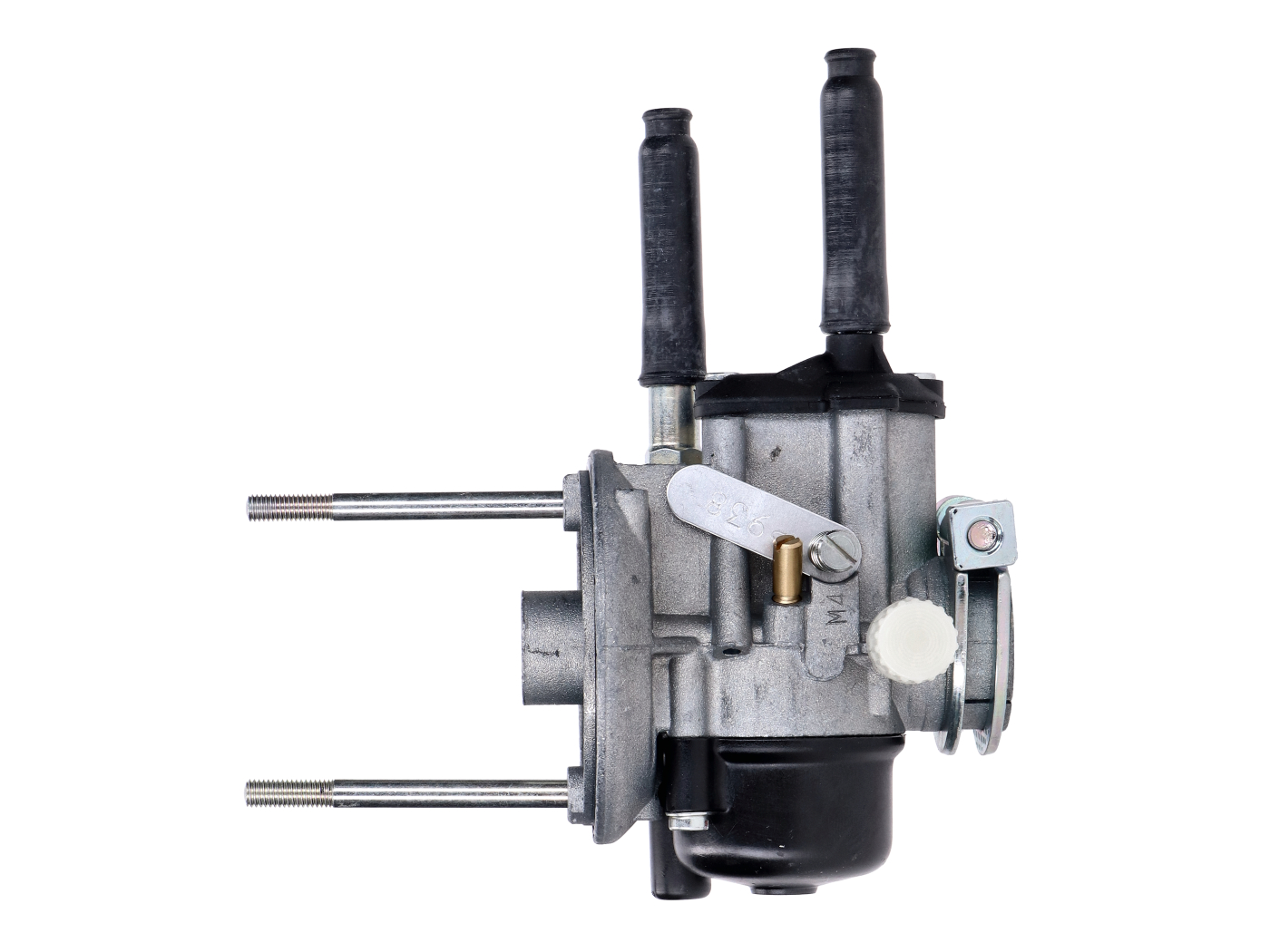

Carburetor Dellorto SHBC 18.16 N for Piaggio Ape TM P 50

Description

Dellorto SHBC 18 16N

The Dellorto SHBC 18.16 N is a high-quality standard carburetor suitable for the Piaggio Ape 50 TM P model (without separate lubrication).

It is ideal as a direct replacement for a worn or damaged original carburetor, as it ensures reliable mixture preparation and stable engine operation.

The carburetor is usually supplied with a factory basic setup, but after installation fine adjustment is recommended according to the specific engine configuration (air filter, exhaust).

OEM numbers for comparison:
• Dellorto 00938
• Piaggio 286890

Technical data

• Diffuser diameter: 16 mm
• Connection diameter: 23 mm
• Connection type: clamp (rigid)
• Air filter connection: model specific
• Main jet: 60
• Idle jet: 42
• Starter jet: 50
• Float: 3.5 g
• Throttle slide: 03
• 2T oil pump connection: not available
• Vacuum connection: not available
• Choke: cable-ready
• Adjustment screws: right side
