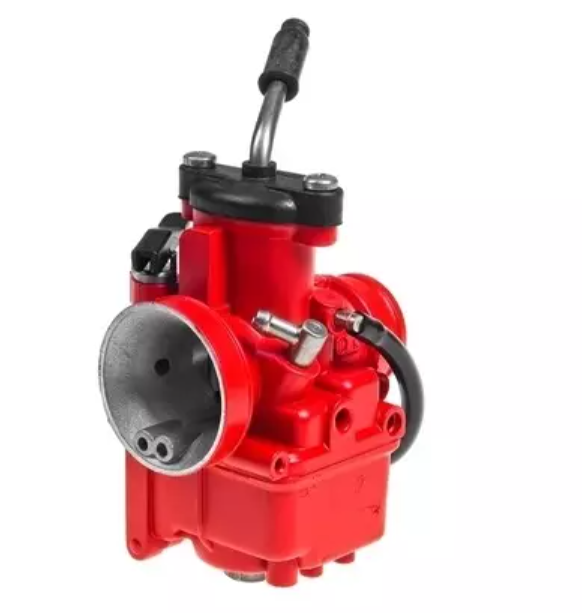

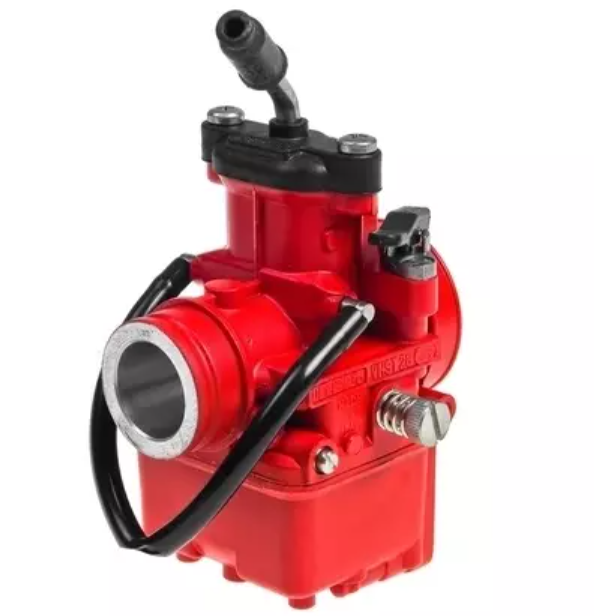

Dellorto Racing Carburetor – VHST 24 BS – RED

Description

Dellorto Racing Carburetor – VHST 24 BS

The VHST Red Racing series has been carefully designed by Dellorto.

It has a semi-flat flap, which is designed to improve and increase fuel flow. The bowl is made of aluminum and has a center screw for easy replacement of the main jet.

Its large body allows this carburettor to be installed on scooter and moped setups and engine sizes from 125 cc onwards.

Attention!!! No oil connection, no vacuum connection

Dimensions:
Outer Ø connection with nozzle: 36 mm
Outer Ø connection with air filter: 49 mm

Original carburetor setting:
Intake nozzle 128 (6 mm)
Throttle needle: D48
Damper: 55

Injector: 265HE
