DMP 12V 85W EVO-Racing electrical kit – Tomos APN

Description

The Kokusan electrical kit (6 coils) CDI, EVO DMP-II model, is an advanced electronic ignition solution for Tomos APN. The set includes a 12-volt voltage regulator, an 85-watt lighting coil, an ignition coil, and a complete wiring harness with a connector for the voltage regulator.

The Racing version features an additional unrestricted ignition coil for improved performance. A cooling fan is also included. This ignition system belongs to the sport category, as it uses a medium-size flywheel instead of the classic flywheel found in original Tomos systems. The flywheel is also compatible with Tomos BT windings.

Features:

• Kokusan CDI ignition, EVO DMP-II model

• Electronic ignition with 6 coils

• 12 V voltage regulator

• 85 W lighting coil

• Ignition coil + additional unrestricted Racing coil

• Complete wiring harness

• Cooling fan included

• Medium-size flywheel (sport class)

• Compatible with Tomos BT windings

• Speed limiter installation possible

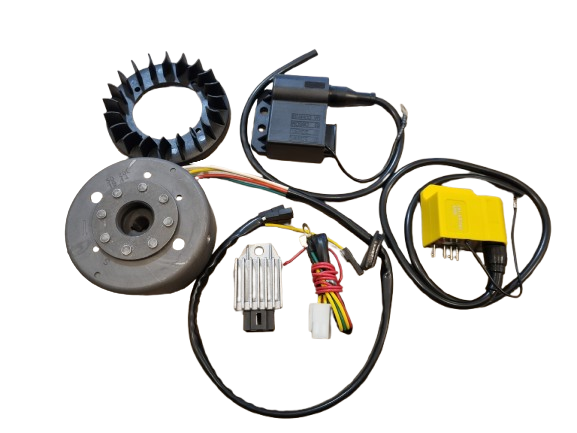

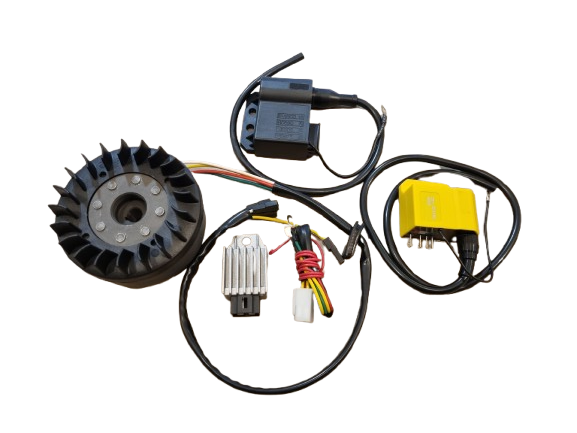

• Set includes all components shown in the picture

Installation note:
The mounting plate slots must be extended for all three mounting bolts. Without modification, installation is only possible using two bolts. The flywheel locating pin must be shortened for proper fitment.

Video presentation:
https://www.tiktok.com/@frcomoto/video/7433840471954181409
