Ignition HPI 2-Ten with lights 40W – Piaggio / Gilera / Italjet 125–180cc 2T

Description

Sport HPI 2-Ten ignition with internal rotor and 40W lighting coil is intended for Piaggio / Gilera 125–180cc 2T engines. Unlike conventional Racing ignitions, it also provides power for lighting, making it suitable for sport modifications where you want to retain functioning lights.

The HPI system provides a stable ignition pulse even at very high rpm – the manufacturer specifies operation up to 20,000 rpm. The kit includes a microprocessor-controlled CDI with one programmed ignition curve.

Technical specifications

• Manufacturer: HPI
• Series: 2-Ten
• Type: sport ignition with internal rotor
• For 125–180cc 2T Piaggio engines
• CDI: 1 programmed ignition curve
• Microprocessor-controlled CDI unit
• Stable ignition pulse up to 20,000 rpm
• Integrated lighting coil: 40 W
• Suitable for sport and Racing configurations

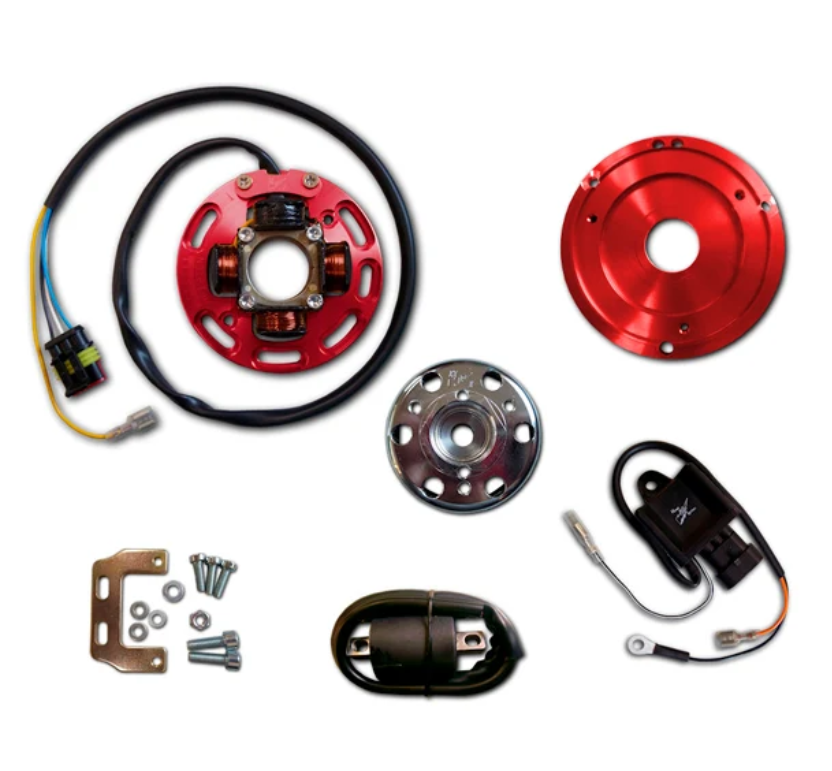

Kit includes

• Stator
• Rotor
• Ignition base plate
• CDI with one curve
• Ignition coil
• Installation kit
• Installation instructions

Suitable for

Gilera

• Runner 125 DD / SP / FX – 1997–2002 – 125cc 2T
• Runner 180 DD / SP / FXR – 1997–2002 – 180cc 2T

Piaggio

• Hexagon 125 2T – 1994–1999
• Skipper 125 2T – 1994–1999
• Hexagon 150 2T – 1994–1997
• Skipper 150 2T – 1994–1999
• Hexagon 180 2T – 1998–1999

Italjet

• Dragster 125 2T – 1997–2001
• Dragster 180 2T – 1999–2001

Advantages

• 40W output for powering lights
• Stable ignition pulse even at high rpm
• Microprocessor-controlled CDI
• One programmed ignition curve
• Lightweight internal rotor for quick engine response
• Suitable for road and sport configurations
• Complete installation kit

Important

The specification that the ignition operates up to 20,000 rpm does not mean that the engine must or will reach 20,000 rpm. Actual engine speed depends on the cylinder, exhaust, carburettor, crankshaft and complete engine configuration.

After installation, the ignition must be correctly adjusted according to the manufacturer’s instructions, as proper ignition timing adjustment is essential for correct and reliable engine operation.
