Pull starter swiing black for Piaggio Ciao Mono / Vario

Description

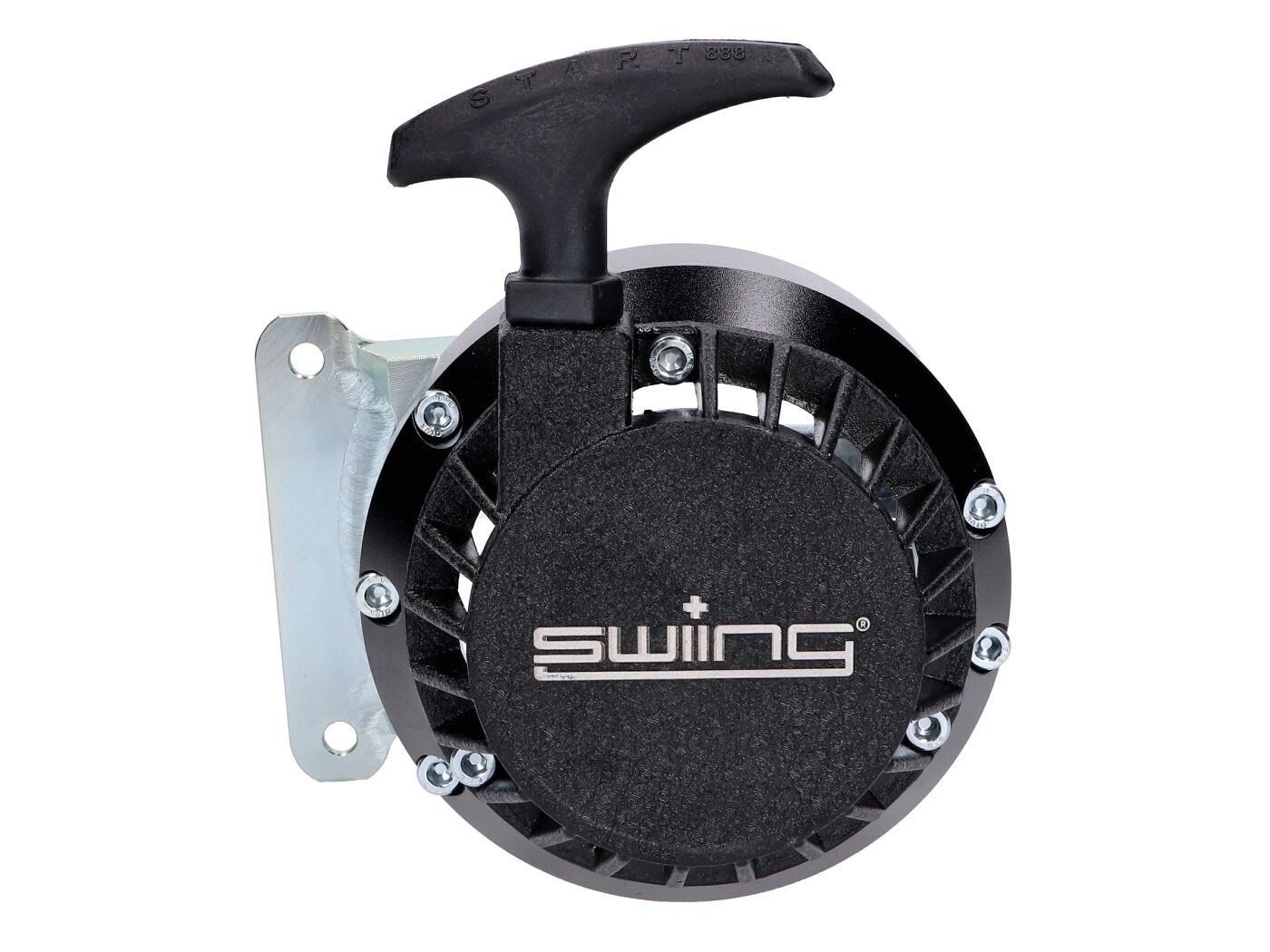

Black pull starter for Piaggio Ciao models with mono or variomatic drive. Ready to install. The pull starter is suitable for racing and the highest loads.
Installation on the vehicle:
Starter pinion: First clean all mounting surfaces. Then screw the appropriate counterpart for the pull starter onto the coupling or variator and secure the flange nut with a liquid lock such as a. B. Loctite.

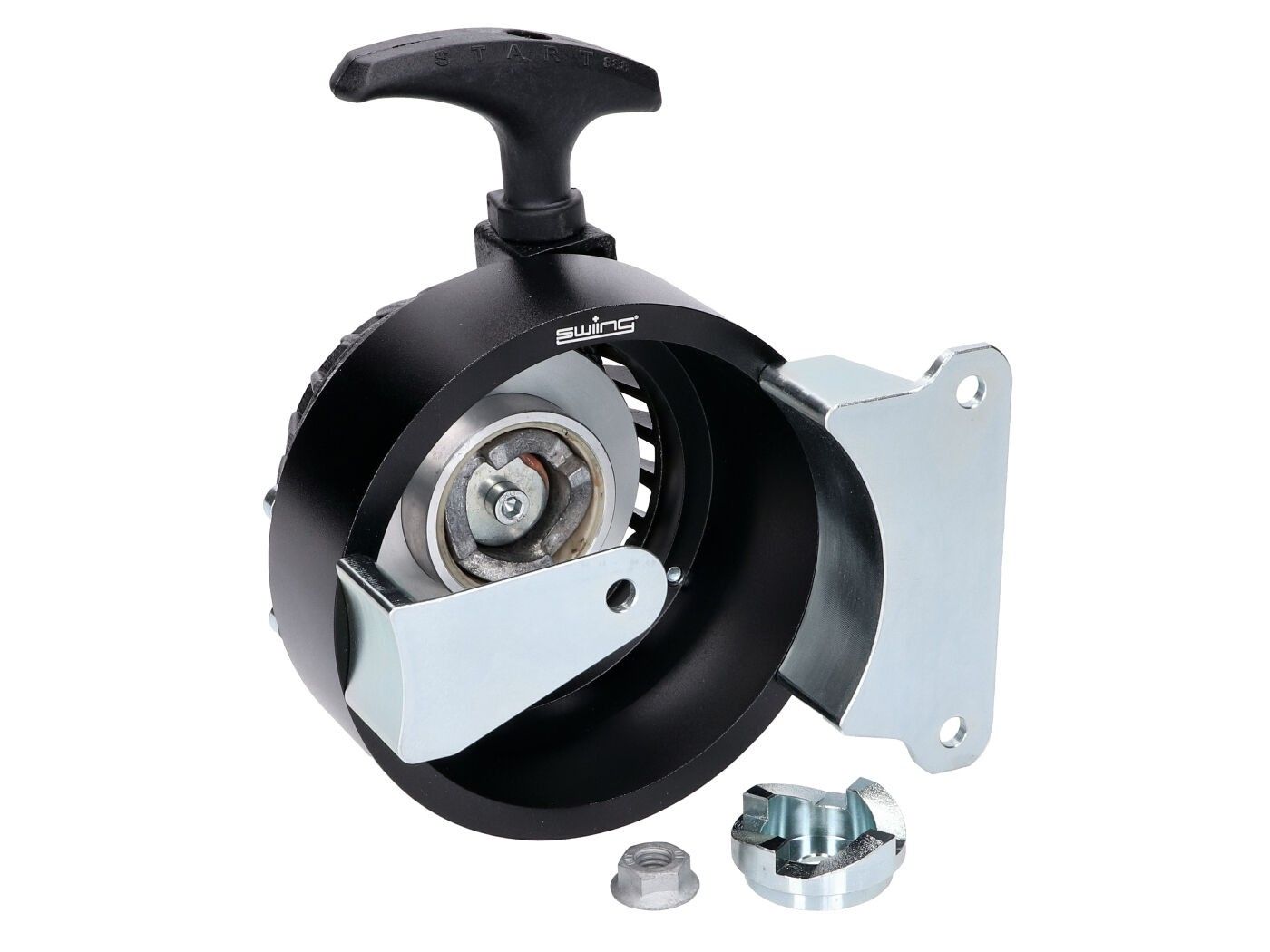

Pull starter: Use the enclosed motor screws to easily fasten the housing adapter. In the next step, the round housing is supplemented with the pull-rope starter unit and screwed tight with the M5x45mm screws. Finally tighten the motor screws.
Starting process:
Before attempting to start, pull the rope slowly a few times so that the engine revs idly. Then hold the handle firmly and pull until it meets resistance. The starting process can now be ended with a stronger pull. Tip: Gloves provide more grip!
Attention:
When the pull starter is installed, the treadmill becomes inaccessible (the pedal arms are in contact with the pull starter housing). Therefore footrests, a longer pedal axle or a pedal axle extension are required.

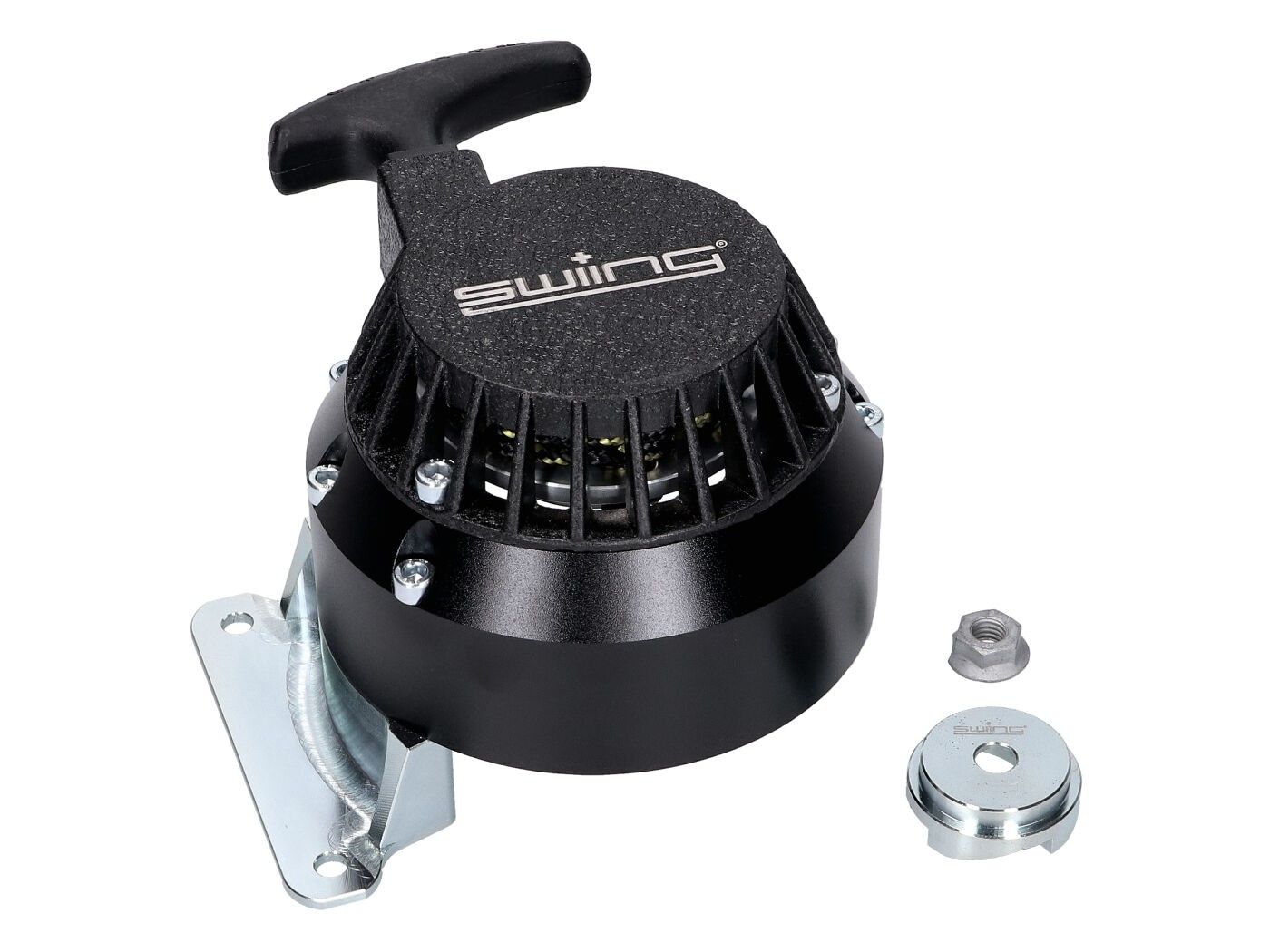

Scope of delivery as shown on the product picture. A pull starter is supplied.
