Cylinder Kit Malossi 172.5cc Ø65 mm – Piaggio / Gilera / Italjet 125–180 2T LC

Description

The new 2026 model introduces an improved version of the legendary Malossi 172.5cc Racing cylinder, developed for liquid-cooled Piaggio, Gilera, and Italjet 125–180cc 2-stroke engines. The cylinder is made from high-quality aluminum with a Nicasil (nickel-silicon carbide) coating, ensuring outstanding heat dissipation, reduced friction, and a long service life even under extreme loads.

With a 65 mm bore, a 52 mm stroke, and a displacement of 172.5 cc, it represents a premium solution for sport and racing modifications. Six large transfer ports provide excellent cylinder filling, improved torque, and significantly more power compared to the original cylinder.

The kit includes everything required for installation, including the cylinder head, piston, gaskets, carbon reed petals, and mounting hardware.

Technical specifications

• Manufacturer: Malossi
• Model: 2026
• Type: Racing cylinder kit
• Engine: 2-stroke
• Cooling: liquid-cooled (H2O)
• Displacement: 172.5 cc
• Cylinder bore: 65.00 mm
• Stroke: 52.0 mm
• Cylinder material: aluminum
• Cylinder coating: Nicasil (nickel-silicon carbide)
• Number of transfer ports: 6
• Compression ratio: 11 : 1
• Piston pin diameter: 16 mm
• Piston rings: 2 (semi-trapezoidal – keystone)
• Exhaust connection: two-bolt flange
• Exhaust bolt spacing: 60 mm
• Exhaust bolt thread: M8
• Spark plug thread: M14 × 1.25 (long thread)

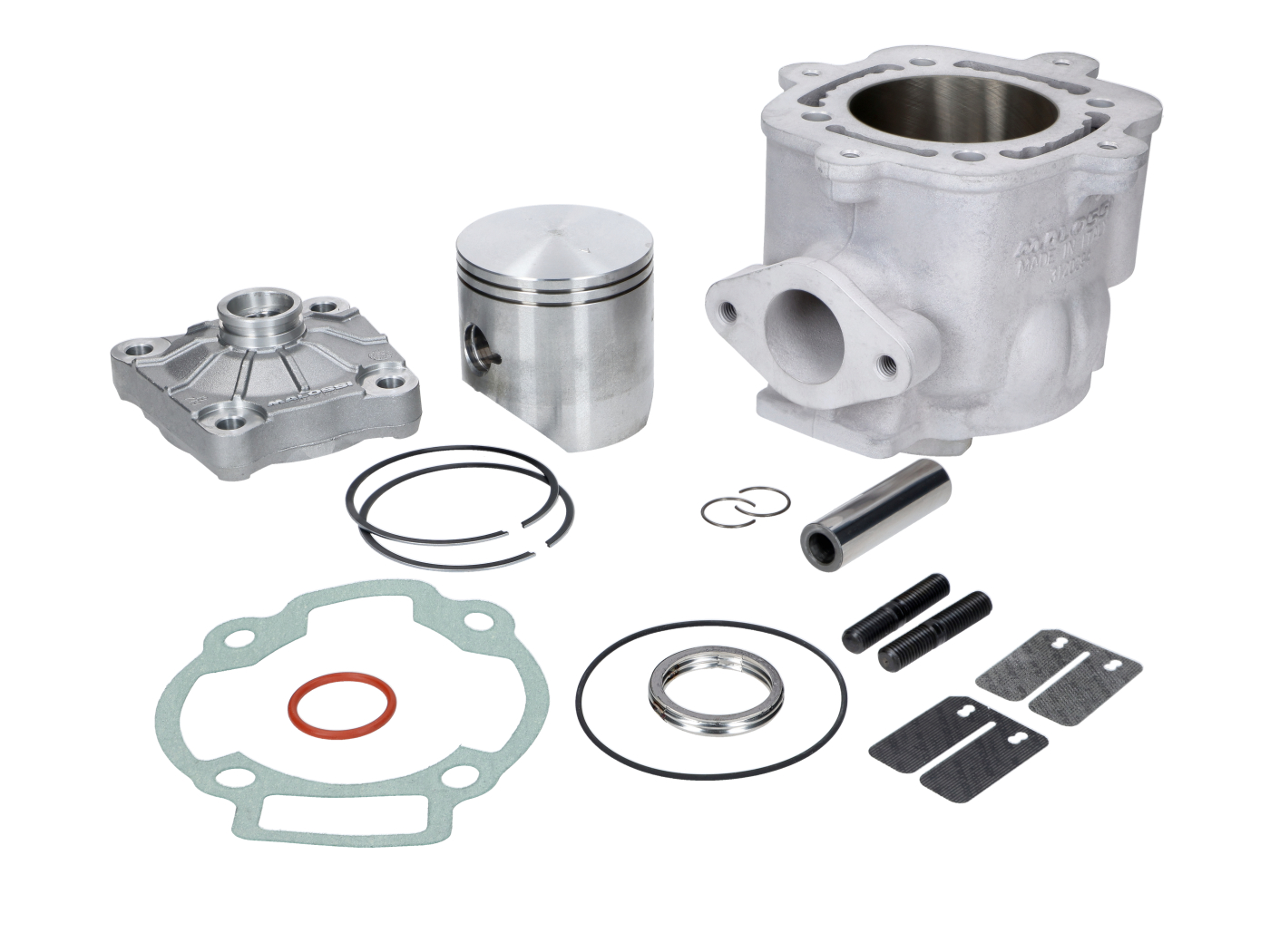

Kit contents

• Aluminum cylinder
• Cylinder head
• Piston
• Ø16 mm piston pin
• 2× piston ring
• 2× piston pin circlip
• Gasket set
• 2× M8×45 exhaust bolt
• 2× carbon reed petal

Suitable for

• Gilera Runner FX 125 2T LC
• Gilera Runner FXR / SP 180 2T LC
• Italjet Dragster 125 2T LC
• Italjet Dragster 180 2T LC
• Piaggio Hexagon 125 2T LC
• Piaggio Hexagon 150 2T LC
• Piaggio Hexagon LX 125 2T LC
• Piaggio Hexagon LXT 180 2T LC

Advantages

• New improved 2026 version
• Aluminum cylinder with Nicasil coating
• Excellent heat dissipation
• Increased power and torque
• 6 large transfer ports for optimal cylinder filling
• High wear resistance
• Includes cylinder head and carbon reed petals
• Suitable for sport and racing modifications
• Genuine Malossi quality

Installation recommendation

• For optimal performance, we recommend using a reinforced crankshaft, a high-quality needle bearing, proper carburetor or fuel injection system tuning, and inspecting the water pump and cooling system. Due to the significantly increased performance, upgrading the exhaust system and CVT transmission is also recommended.

The Malossi 172.5cc 2026 represents the top of the range for Piaggio, Gilera, and Italjet 125–180 2T LC engines and is an excellent choice for anyone seeking maximum performance, outstanding reliability, and the latest Malossi improvements.
