Malossi Fly System clutch 107 mm with bell – Piaggio / Vespa / Aprilia / Gilera / Kymco / Peugeot 50cc

Description

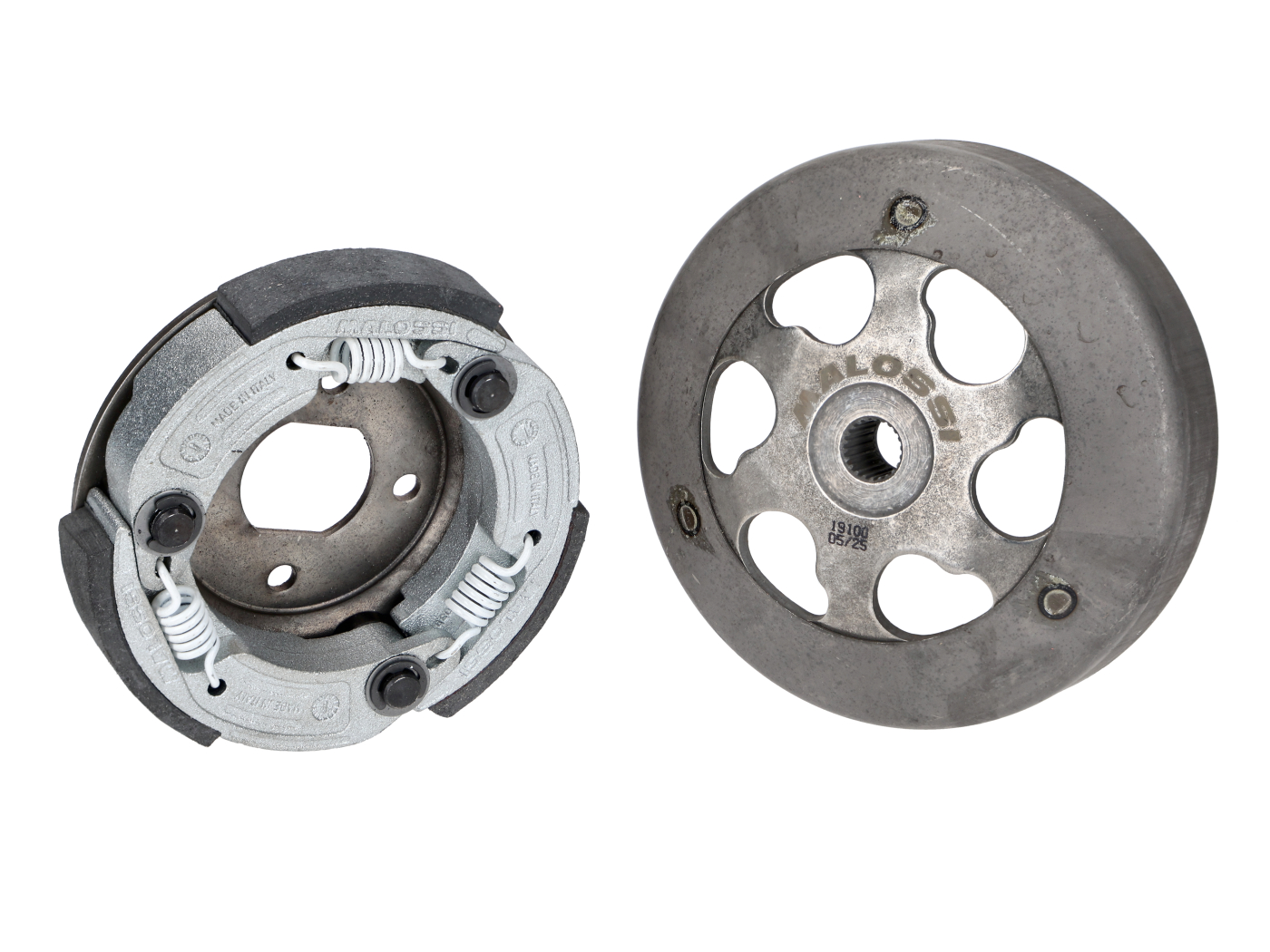

Kit Malossi Fly System 107 mm contains a reinforced centrifugal Malossi Fly Clutch and the corresponding Malossi clutch bell. It is intended as a quality sports replacement for the original clutch on numerous 50cc scooters.

The reinforced clutch construction is suitable for everyday use and increased loads, while the dynamically balanced 107 mm bell ensures smoother operation, reduces vibrations and provides reliable power transmission.

Technical specifications

• Manufacturer: Malossi
• Series: Fly System
• Type: centrifugal clutch with bell
• Clutch: Malossi Fly Clutch
• Internal bell diameter: 107 mm
• Bell material: Fe DC04 deep-drawn steel
• Hub / gearing: carbon steel
• Hub welded using the TIG process
• 100% dynamically balanced bell
• 3-point weld arrangement at an angle of 120°
• Design for reducing vibrations
• Surface treatment: nitrided / surface hardened
• Suitable for standard and sports configurations

Kit includes

• 1x Malossi Fly Clutch centrifugal clutch
• 1x Malossi clutch bell 107 mm

Suitable for

Aprilia

• Mojito Custom 50 2T E2, 2004–2010
• Scarabeo 50 4T E1, 2000–2020
• Scarabeo 4V 50 4T E2, 2009–2020
• Scarabeo Classic 50 2T E4, from 2018
• Scarabeo Street 50 2T E3, 2006–2014
• Scarabeo Street 50 2T E4, from 2018
• Sportcity One 50 4T E3, 2008–2013
• Sportcity One Street 50 2T E2, 2008–2013
• SR 50 2T LC, from 2004
• SR R 50 2T LC E2, 2003–2012
• SR R 50 2T LC E4, from 2018
• SR R Factory 50 2T LC E2, 2005–2013
• SR Ditech GP1 50 2T LC
• SR Motard 50 2T E2, 2012–2018
• SR Motard 50 2T E4, from 2018
• SR Street 50 2T LC E2, 2004–2014
• SXR 50 ie 4T E5, from 2021

Baotian / BSV / Cagiva / Derbi

• Baotian Eco Bike 50 4T, 2006–2010
• Baotian Rebel / Rocky / Tanco 9/12 50 4T, 2010–2015
• BSV Dio GP 50, 1989–1990
• BSV Dio ZX 50 2T
• Cagiva City 50 2T, 1996–1997
• Derbi Atlantis / Bullet 50 2T, from 2003
• Derbi GP1 50 2T LC
• Derbi GP1 Open 50 2T LC
• Derbi GP1 Revolution 50 2T LC
• Derbi Variant Sport 50 2T

Gilera

• DNA 50 2T LC
• Easy Moving 50 2T
• Ice 50 2T
• Runner PureJet 50 2T LC
• Runner SP 50 2T LC
• Runner 50 2T LC
• Storm 50 2T
• Stalker 50 2T
• Typhoon 50 2T
• Typhoon X 50 2T

Honda

• Bali 50 2T
• Dio G 50 2T
• Dio ZX 50 2T
• SH 50 2T, from 1996
• SFX 50 2T
• SGX Sky 50 2T
• Shadow 50 2T
• SXR 50 2T
• X8R X 50 2T
• X8R S 50 2T

Kymco

• Agility R10 / R12 / RS 50 4T E2
• Agility R16 / RS 50 4T E2
• Agility R16 50 2T E2
• Agility R12 50 ie 4T E4, from 2019
• Agility R16+ 50 2T E2, from 2016
• Agility R16+ 50 4T E2, from 2017
• Agility R16+ 50 ie 4T E4, 2019–2021
• Agility R16+ 50 ie 4T E5
• Dink 50 2T
• Dink 50 2T LC
• Dink 50 4T E2
• DJ X 50 2T
• DJ Y 50 2T
• Heroism 50 2T
• Like 50 4T E2
• People 50 2T
• People 50 4T E2
• People S 50 4T E2
• People S 50 ie 4T E4, from 2019
• Sento 50 4T E2
• Sniper 50 2T
• Super 8 50 4T E2
• Super 8 R 50 4T E5, from 2023
• Super 9 50 2T LC
• Top Boy / Cobra 50 2T
• Vitality 50 4T E2

Advantages

• Kit of clutch and corresponding 107 mm bell
• Reinforced Malossi Fly Clutch version
• Suitable for everyday and sports use
• Dynamically balanced bell
• Reduced vibrations during operation
• Good resistance to mechanical and thermal loads
• Direct replacement for the corresponding original centrifugal clutch

Installation note

Before ordering, check whether the vehicle uses a clutch with a 107 mm bell. When removing the rear variator transmission assembly, caution is required due to the preloaded contra spring of the rear pulleys.

After installation, we recommend checking the correct operation of the clutch, bell and complete CVT transmission.
