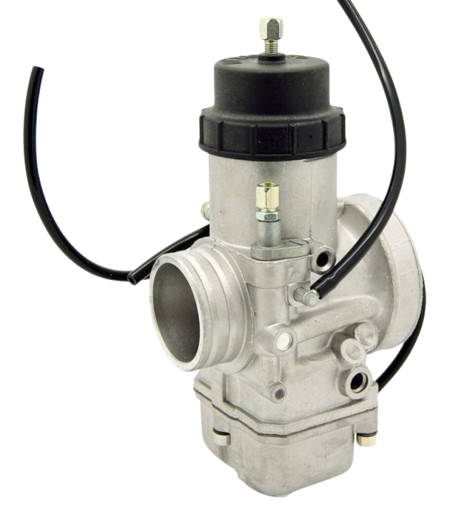

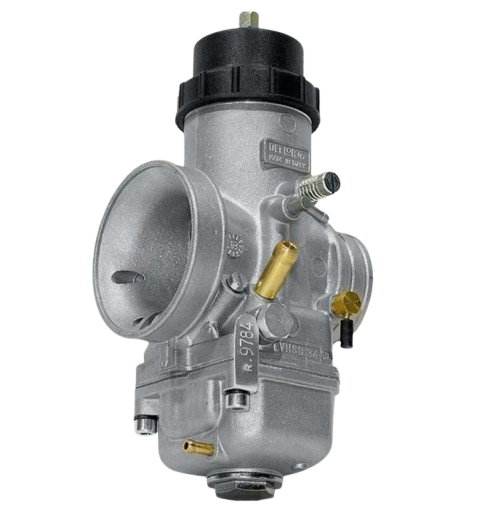

Carburetor Dell’Orto VHSB 34 LD Ø34 mm – Racing

Description

High-quality original carburetor Dell’Orto VHSB 34 LD is designed for high-performance 2T sports and Racing engines. It is equipped with a flat slide, which provides very fast throttle response, improved air-fuel mixture flow, and efficient operation at high RPM.

Due to its 34 mm diameter, it is primarily intended for heavily tuned engines where a high mixture flow is required. This is a professional Racing component that requires proper adjustment according to the engine configuration for optimal performance.

Technical specifications

• Manufacturer: Dell’Orto
• Model: VHSB 34 LD
• Type: Racing carburetor
• Carburetor diameter: 34 mm
• Design: flat slide
• Engine-side connection diameter: 44 mm
• Air filter-side connection diameter: 64 mm
• Main jet: 160
• Idle jet: 40
• Atomizer / emulsion tube: DP266
• Needle: K57
• Slide: 40
• Choke: manual, cable-operated
• Separate oil supply connection: yes
• Carburetor cover: plastic
• Engine: 2T
• OEM / Dell’Orto number: 09784
