Intake kit Stage6 Big Valve MK2 for Peugeot Vertical

Description

The complete Stage6 Big Valve MK2 intake system for Peugeot with a vertical engine is designed for high-performance sport and racing builds. The kit includes a reed valve block, intake manifold and carburetor adapter, providing significantly better mixture flow compared to the original system.

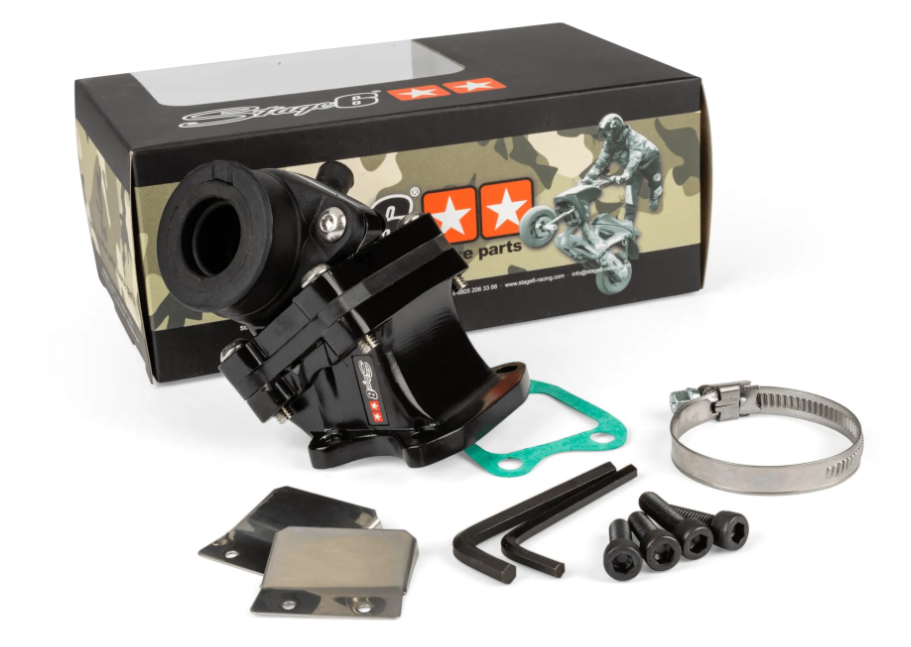

Kit contents

• Intake manifold with polymer coating
• Oil and vacuum connection
• Vulcanized NBR reed valve block
• Adapter for carburetors with 24 mm connection (PHBG)
• Gaskets, screws and mounting hardware

Advantages of the Stage6 Big Valve MK2 kit

The large dual-petal reed valve system provides significantly better airflow and fuel flow than the original single-petal reed valve. It reaches its full potential especially when combined with larger carburetors, where it delivers improved engine response and increased power.

A special advantage of the system is the replaceable rubber intake manifold connector. This allows you to use different types of carburetors without replacing the entire manifold, simply by changing the appropriate adapter.

Suitable for carburetors with a 24–25 mm connection

• Dellorto PHVA 12–21 mm
• Dellorto PHBN 12–21 mm
• Dellorto PHBG 12–21 mm
• Polini CP 17.5–21 mm
• Gurtner 12–16 mm
• Weber 12–16 mm
• TK 12–16 mm
• Chinese 2T carburetors 12–16 mm
• Arreche 16–21 mm

With additional adapters also suitable for

31 mm connection

• Dellorto PHBL 20–26 mm
• Mikuni TM24

35 mm connection

• Keihin PWK 19–28 mm
• Dellorto PHBH 26–30 mm
• Dellorto VHST 24–28 mm
• Dellorto VHSH 30 mm

Important

The original carburetor with threaded connection and the original air filter housing cannot be used with this intake system.

An excellent choice for all Peugeot scooter owners with a vertical engine who want to improve mixture flow, increase engine performance and prepare the vehicle for use with larger sport carburetors.
