Piston 50cc 40.00×12 mm – 1E40QMB / Keeway

Description

High-quality piston 50cc is designed for 1E40QMB two-stroke engines and selected Keeway models. It is an excellent replacement for a worn or damaged original piston, ensuring reliable operation, optimal compression, and a long engine service life.

The piston is manufactured to original dimensions, allowing easy installation without modifications and is suitable for standard 50cc engines.

Technical specifications

• Type: piston 50cc
• Piston diameter (D): 40.00 mm
• Piston pin diameter (d): 12 mm
• Height from edge to center of piston pin (C): 25 mm
• Combustion chamber height (H): 2 mm
• Overall piston height (L): 50 mm
• For engines: 2T 1E40QMB

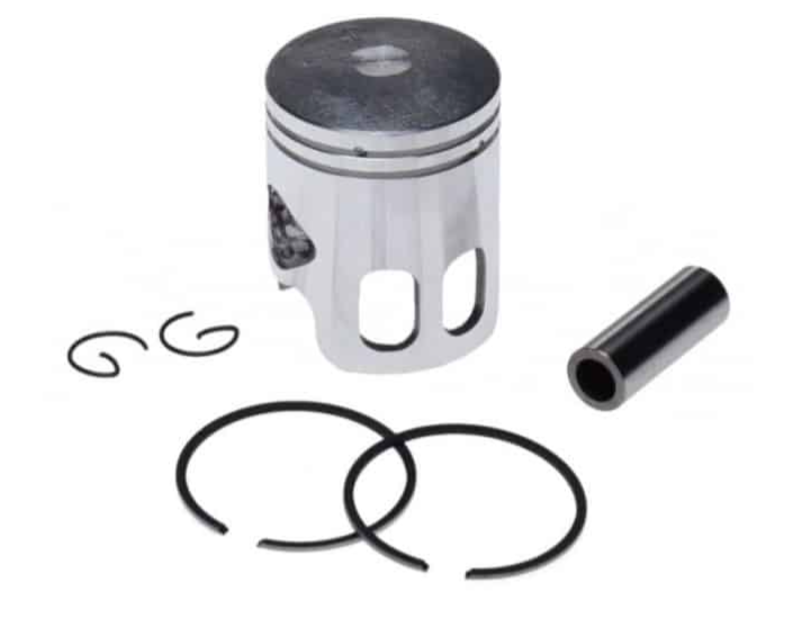

Package contents

• Piston 40.00 mm
• Piston pin 12 mm
• Piston pin circlips
• Piston rings

Suitable for

• Keeway 50 2T
• 1E40QMB 2T engines
