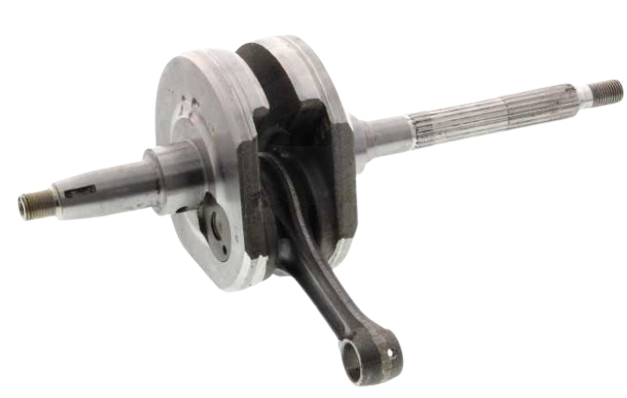

Crankshaft Piaggio Cat 1 15 mm – Leader 200cc 4T carburettor E1-E3

Description

Original Piaggio crankshaft is intended for Piaggio Leader 200cc 4T engines with carburettor. It is an original replacement part in the Cat 1 version, which uses a 15 mm piston pin.

There are two crankshaft categories for these engines, therefore it is essential to check the marking on the originally installed crankshaft before ordering. The replacement crankshaft must be the same category as the originally installed one.

Technical specifications

• Manufacturer: Piaggio
• Version: original replacement part
• Type: crankshaft
• Category: Cat 1
• Category marking: A or 1
• Piston pin: Ø15 mm
• For engines: Piaggio Leader 200cc
• Engine type: 4T
• Version: carburettor
• Euro standard: E1–E3

Important – category check

Check the stamped marking on the original crankshaft:

• A or 1 = Cat 1 → this crankshaft is correct
• B or 2 = Cat 2 → this crankshaft is not correct, the Cat 2 version must be ordered

Note

The crankshaft category must be checked before ordering. If the existing crankshaft is marked A or 1, this original Piaggio Cat 1 crankshaft is suitable. For marking B or 2, a different crankshaft model must be selected.

• Aprilia Atlantic 200 H2O 4T E2 ’03-’06 (ZD4SPA)
• Aprilia Scarabeo 200 GT H2O 4T E2 ’03-’06 (Piaggio) (ZD4TDA00 / ZD4TDA01 / ZD4TDA03)
• Aprilia Sport City 200 Cube H2O 4T E3 ’08-’10 (ZD4VBG)
• Aprilia Sport City 200 H2O 4T E2 ’04-’06 (ZD4VBA00 / ZD4VBA01)
• Aprilia Sport City 200 H2O 4T E3 ’06-’08 (ZD4VBA01)
• Derbi Boulevard 200 AIR 4T E2 ’05-’06 (VTHBL4B1A)
• Gilera Runner 180 VXR H2O 4T E1 ’02-’04 (ZAPM243000)
• Gilera Runner 200 ST H2O 4T E3 ’08-’11 (ZAPM46401)
• Gilera Runner 200 VXR H2O 4T E1 ’02-04 (ZAPM243000)
• Gilera Runner 200 VXR H2O 4T E2 ’05-’06 (ZAPM46200 / ZAPM46400)
• Gilera Runner 200 VXR H2O 4T E3 ’06-’07 (ZAPM46300)
• Malaguti F12 200 Phantom Max H2O 4T E2 ’03-’07 (M244M) (ZJM67)
• Malaguti Madison 180 R H2O 4T E2 ’02-’04 (M242M) (ZJM63)
• Malaguti Madison 200 S H2O 4T E2 ’02-’06 (M244M) (ZJM65)
• Piaggio Beverly Sport 200 H2O 4T E1 ’01-’03 (ZAPM28200 / ZAPM28900)
• Piaggio Beverly Sport 200 H2O 4T E2 ’05 (ZAPM289L)
• Piaggio Carnaby 200 H2O 4T E3 ’07-’08 (ZAPM60100)
• Piaggio Hexagon GTX 180 H2O 4T E1 ’00-’02 (Leader) (ZAPM20000)
• Piaggio Liberty RST 200 AIR 4T 2V E2 ’04-’06 (ZAPM38400)
• Piaggio Liberty RST 200 AIR 4T 2V E3 ’06-’08 (ZAPM38500)
• Piaggio Liberty Sport 200 AIR 4T 2V E2 ’06 (ZAPM38401)
• Piaggio Liberty Sport 200 AIR 4T 2V E3 ’06-’07 (ZAPM38501)
• Piaggio X8 200 H2O 4T E2 ’04-’07 (ZAPM36200)
• Piaggio X9 180 H2O 4T E1 ’00-’02 (ZAPM23000)
• Piaggio X9 200 H2O 4T E1 ’00-’02 (ZAPM23000)
• Piaggio X9 Evo 200 H2O 4T E2 ’03-’05 (ZAPM23000)
• Vespa Granturismo 200 L H2O 4T E2 ’03-’05 (ZAPM31200 / ZAPM319K)
• Vespa Granturismo 200 L H2O 4T E2 ’06-’08 (ZAPM31200 / ZAPM319K)
