Crankshaft Airsal Racing Xtrem Piaggio / Gilera

Description

With the new X-Treme Racing crankshaft, the Spanish brand provider AIRSAL is entering the high quality league in the field of crankshafts. Absolutely suitable racing crankshaft on the level of Malossi MHR-RHQ, Metrakit Pro Race or the Polini Evolution crankshaft. As the name suggests, this shaft is designed for extreme loads. For example Airsal X-Treme 77ccm, Malossi MHRTeam, Polini Evolution, Hebo Manston Stage6 Racing etc. The shaft has the standard stroke of 39.3mm for Piaggio engines.

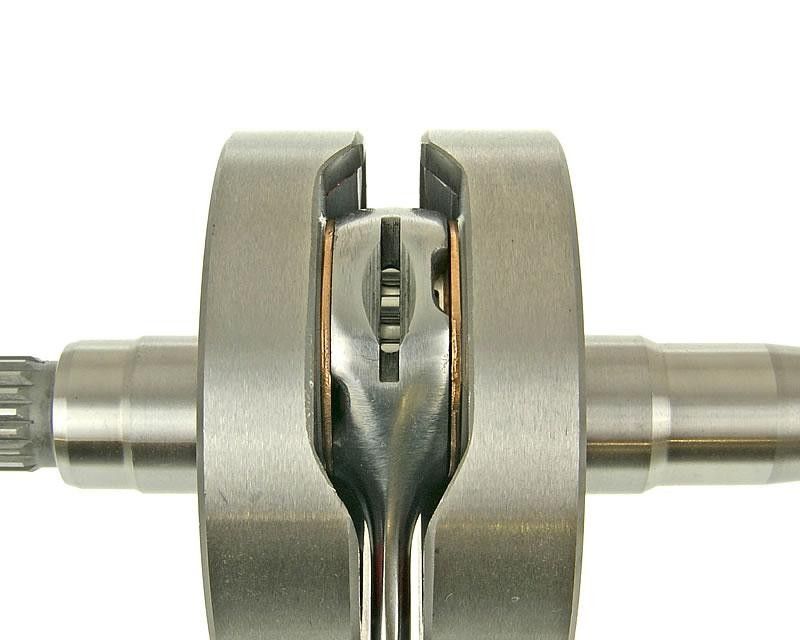

The completely forged shaft is made from high-alloy 18NiCrMo5 steel and hardened using a special heat process. The full cheek design enables higher pre-compression and thus ensures better cylinder filling. When manufacturing the connecting rod, special attention was also paid to the load capacity. The connecting rod is completely forged and surface polished to strengthen the structure. It is subjected to the same hardening process as the crankshaft, guaranteeing absolutely low wear in the bearing area. The silver needle bearings ensure excellent storage and are stable at speeds up to over 16,000 rpm. A perfect, dynamically balanced crankshaft for the heaviest loads and optimal performance in high-end engines.
39.3mm strokefor 12mm piston pins
Made in Europe.

Aprilia – Mojito Custom 50 04-09 [Piaggio] ZD4TFA

Aprilia – Scarabeo 50 2T 07- ZD4THG

Aprilia – Scarabeo 50 Street 2T 04-06 ZD4THE

Aprilia – Sport City One 50 2T ZD4SBA

Aprilia – SR 50 Fun Master 03- [Piaggio]

Aprilia – SR 50 Motard 12-13 LBMC50200

Aprilia – SR 50 Motard 14- LBMC50201

Aprilia – SR 50 MY ZD4VF

Aprilia – SR 50 R LC 06-14 [Piaggio] ZD4VFD00

Aprilia – SR 50 Racing 07/03- [Piaggio]

Aprilia – SR 50 Sport 07/03- [Piaggio]

Aprilia – SR 50 Street LC 04-11 [Piaggio] ZD4TEA

Derbi – Atlantis 50 AC 2002->[Piaggio Motor]

Derbi – Atlantis 50 LC 2002->[Piaggio Motor]

Derbi – Bullet 50 AC [Piaggio Motor]

Derbi – GP1 50 Race 2T 05-07 VTHPR1A1A

Derbi – GP1 Revolution 50

Gilera – DNA 50 ZAPC270

Gilera – Ice 50 ZAPC300

Gilera – Runner 50 -01 DD ZAPC1400

Gilera – Runner 50 -98 DT ZAPC1400

Gilera – Runner 50 FL Vergaser 01-04 ZAPC36

Gilera – Runner 50 SP Vergaser 05- ZAPC461

Gilera – Stalker 50 DD -98 ZAPC130

Gilera – Stalker 50 DD 99-03 ZAPC130

Gilera – Stalker 50 DT -98 ZAPC130

Gilera – Stalker 50 DT 04- ZAPC40100

Gilera – Stalker 50 DT 99-03 ZAPC130

Gilera – Stalker 50 DT Naked ZAPC40102

Gilera – Storm 50 -99 TEC1

Gilera – Storm 50 07- ZAPC290

Italjet – Jet Set 50 2-Takt [Piaggio]

Italjet – Torpedo 50 2-Takt [Piaggio]

Piaggio – Diesis 50 DT 01- ZAPC341

Piaggio – Diesis 50 ZAPC343

Piaggio – Easy Moving 50 SSP2T

Piaggio – Fly 50 2T LMBC447

Piaggio – Fly 50 DT 2T ZAPC441

Piaggio – Free 50 DT 99- ZAPC390

Piaggio – Free 50 DT FCS2T

Piaggio – Free 50 Post DT FCS2T

Piaggio – Free 50 TT 99- ZAPC390

Piaggio – Free 50 TT FCS2T

Piaggio – Liberty 50 2T 07- ZAPC425

Piaggio – Liberty 50 2T 09- ZAPC491

Piaggio – Liberty 50 2T 97- ZAPC150

Piaggio – Liberty 50 2T Post 02-04 ZAPC421

Piaggio – Liberty 50 2T RST 04-06 ZAPC421

Piaggio – Liberty 50 2T RST ZAPC374

Piaggio – Liberty 50 2T Sport 07-08 ZAPC425

Piaggio – NRG 50 DT LC 94-96 SAL1T

Piaggio – NRG 50 mc² DD LC 96-98 ZAPC040

Piaggio – NRG 50 mc² DD LC 98- ZAPC18

Piaggio – NRG 50 mc² DT LC 96-98 ZAPC040

Piaggio – NRG 50 mc² DT LC 98- ZAPC18

Piaggio – NRG 50 mc² Extreme DD LC 99-02 ZAPC220

Piaggio – NRG 50 mc² Extreme DT AC 99-02 ZAPC210

Piaggio – NRG 50 mc³ DD LC 01-04 ZAPC320

Piaggio – NRG 50 mc³ DT AC 01-04 ZAPC210

Piaggio – NRG 50 Power DD LC 05-06 ZAPC451

Piaggio – NRG 50 Power DD LC 07-09 ZAPC451

Piaggio – NRG 50 Power DT AC 05-06 ZAPC453

Piaggio – NRG 50 Power DT AC 07-09 ZAPC453

Piaggio – NTT 50 DT LC 95-96 SAL1T

Piaggio – Quartz 50 DT LC 92-96 NSP1T

Piaggio – Sfera 50 TT AC 91-94 NSL1T

Piaggio – Sfera NSL 50 TT AC 91-94 NSL1T

Piaggio – Sfera RST 50 DT AC 95-97 ZAPC010

Piaggio – Storm 50 DT AC 94-96 TEC1T

Piaggio – TPH 50 / New TPH 50 DT AC 08-10 LBMC481

Piaggio – TPH 50 / New TPH 50 DT AC 10- LBMC501

Piaggio – TPH 50 / Typhoon 50 DT AC 93-97 TEC1T

Piaggio – TPH-X 50 DT AC 99-03 TEC2T

Piaggio – TPH-XR 50 DT AC 00- ZAPC190

Piaggio – TPH-XR 50 DT AC 01- ZAPC290

Piaggio – Zip 2 50 DT AC 00-09 ZAPC250

Piaggio – Zip 2 50 DT AC 10- LBMC25E

Piaggio – Zip 2 SP 50 DT LC 00- ZAPC250

Piaggio – Zip 50 TT AC 92-94 SSL1T

Piaggio – Zip Base 25 TT AC 96-98 SSP2T

Piaggio – Zip Base 50 DT AC 96-98 SSP2T

Piaggio – Zip Base 50 TT AC 96-98 SSP2T

Piaggio – Zip Fast Rider 50 DT AC 94-96 SSL1T

Piaggio – Zip Fast Rider 50 DT AC 96-00 ZAPC070

Piaggio – Zip RST 50 DT 96-00 ZAPC060

Piaggio – Zip RST 50 TT 96-00 ZAPC060

Piaggio – Zip SP 50 DT LC 96-00 ZAPC110

Piaggio – Zip SSL 25 TT AC 92-96 SSL1T

Piaggio – Zip SSL 50 TT AC 92-96 SSL1T

Vespa – ET2 50 -00 ZAPC160

Vespa – ET2 50 00- ZAPC381

Vespa – LX 50 2T ZAPC381

Vespa – LXV 50 ZAPC381

Vespa – Primavera 50 2T 13- ZAPC532

Vespa – S 50 2T Sport 12- ZAPC381

Vespa – S 50 2T ZAPC381

…(96)
