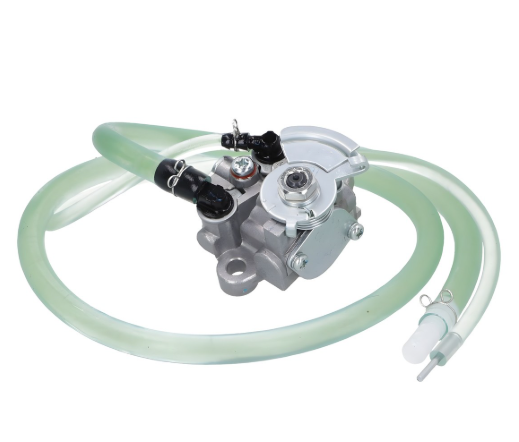

Oil pump original Piaggio – 50cc 2T AC / LC (type M.02)

Description

Original PIAGGIO oil pump for automatic lubrication of 50cc 2-stroke engines. It is intended as a direct replacement for the original oil pump on corresponding Gilera, Piaggio and Vespa models.

The pump supplies the correct amount of 2T oil to the engine depending on engine operation. It is suitable for vehicles originally equipped with the corresponding Mikuni oil pump version.

Technical specifications

• Manufacturer: Piaggio
• Type: oil pump / 2T oil pump
• Version: original Piaggio
• Pump type: M.02
• For 50cc 2T engines
• For automatic lubrication system
• Replacement for the corresponding original Mikuni version

Suitable for

Gilera

• Gilera Runner 50 DD H2O 2T E1, 1998–2001
• Gilera Runner 50 DT H2O 2T E1, 1998–2001
• Gilera Runner 50 FL H2O 2T E2, 2002–2004
• Gilera Runner 50 SP H2O 2T E2, 2002–2004

Piaggio

• Piaggio NRG MC2 50 H2O 2T, 1997
• Piaggio NRG MC2 DD 50 H2O 2T, 1998
• Piaggio NRG MC2 DT 50 H2O 2T, 1998
• Piaggio Zip II 50 AIR 2T E1, 2000–2005
• Piaggio Zip SP1 50 H2O 2T, 1996–2000
• Piaggio Zip SP2 50 H2O 2T E1, 2001–2005
• Piaggio Zip SP2 50 H2O 2T E2, 2006–2013

Vespa

• Vespa ET2 50 AIR 2T CAT, 1996–1999

Note

Before ordering, we recommend checking the version of the existing oil pump, as different versions were used on individual models. This pump is intended for the models listed above with the corresponding original Mikuni version.

After installation, the 2T oil system must be properly bled and the oil supply checked, as insufficient lubrication can cause serious engine damage.
