Speedometer multifunction digital Stage6 R/T MK2 white

Description

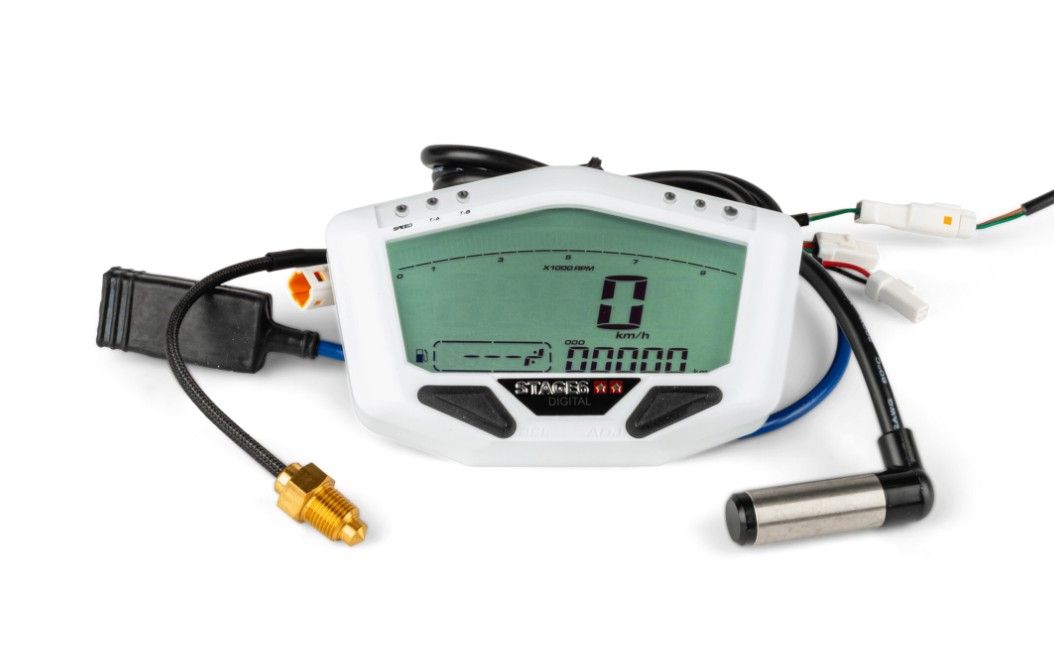

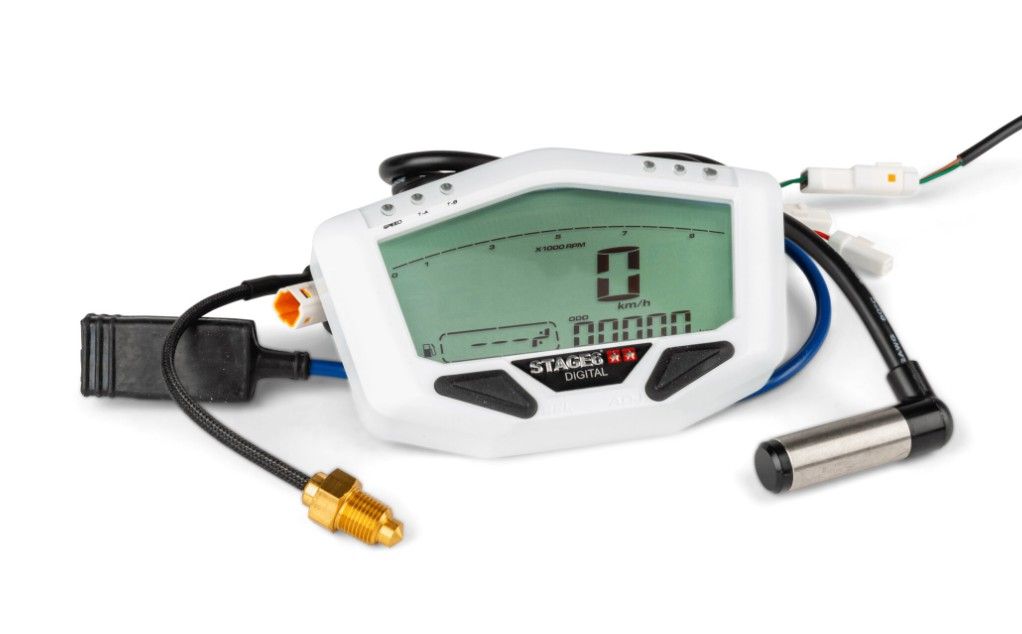

Stage6 Dashboard MK 2 whiteThe popular digital speedometer from Stage6 R/T received an upgrade: the MK 2 version of the Stage6 R/T multifunction dashboard instrument can now also display EGT (exhaust gas temperature).
The instrument is available in black, white and orange
Stage6 Dashboard FunctionsThe display is backlit, the device measures 100x60x20mm and is run via the 12V on-board voltage.
RPM is measured inductively, speed via a magnetic sensor attached to the wheel. Speedometer adapters for Yamaha/MBK are also available so speed is transmitted directly to the speedometer via the speedometer drive.
Suitable for 2-stroke and 4-stroke engines, scooters, 50cc motorcycles (supermoto) and even cars!
extra Feature EGT DisplayUsing the new S6 R/T dashboard means you no longer need a second instrument to read the EGT temperature. With the help of the EGT sensor (not included!!), the exhaust gas temperature can be measured to optimize carburetor settings. The EGT values are displayed in real time and there’s a memory function for the maximum values for water and EGT.
Stage6 have succeeded in expanding the already very comprehensive multifunctional device into a complete dashboard that meets all requirements.Note: the sensor and cable for the EGT function must be ordered separately!

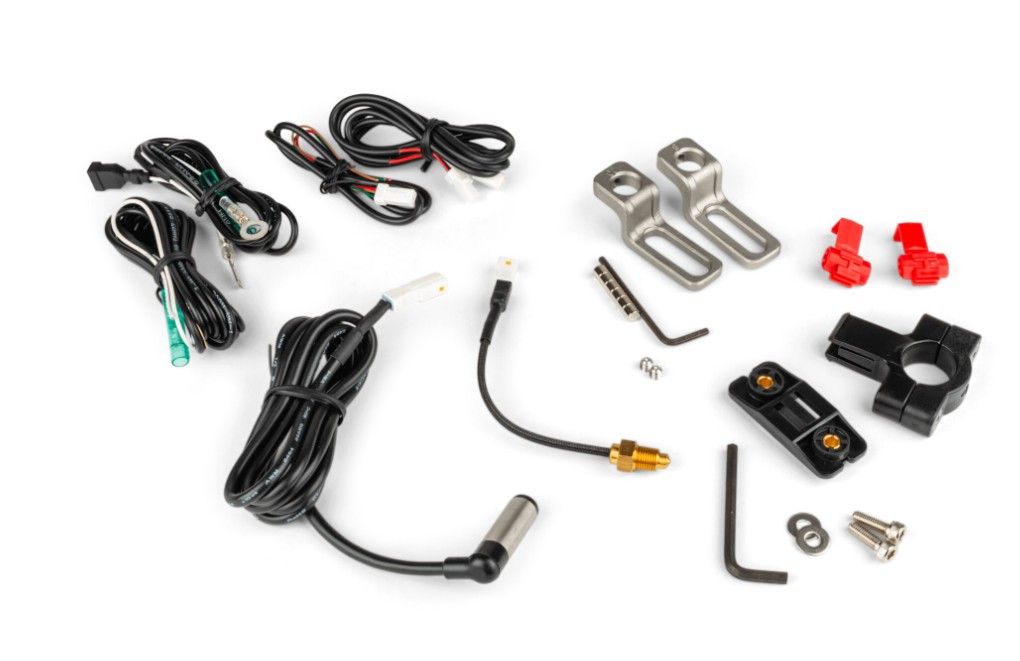

MK2 dashboard accessoriesThe speedometer is supplied with a PT-1/8 temperature sensor for water temperature.
Additional sensors (M10 x 1.0 or M14 x 1.25) are available as spare parts for Piaggio, Peugeot scooters and supermotos.
Note: the EGT sensor, an EGT extension cable and the clamp for the EGT sensor (manifold) have to be ordered separately!
Functions Stage6 R/T speedometer MK 2:Speedometer 0-360 km/h (alternatively mph)Tachometer up to 20,000 rpmScalable speed graphEGT exhaust gas temperature (EGT sensor available separately!)Thermometer 0-250° C (PT-1/8′ sensor)Hour meter 0-999.9 hFuel gauge 0-100%Voltmeter 0-18.0 VOdometer, shift light, top speed memory, temperature alarmIn addition, a timer function is integrated which allows the following data to be measured:- Time required to reach a specified speed.- Time required to reach a specified distance.
