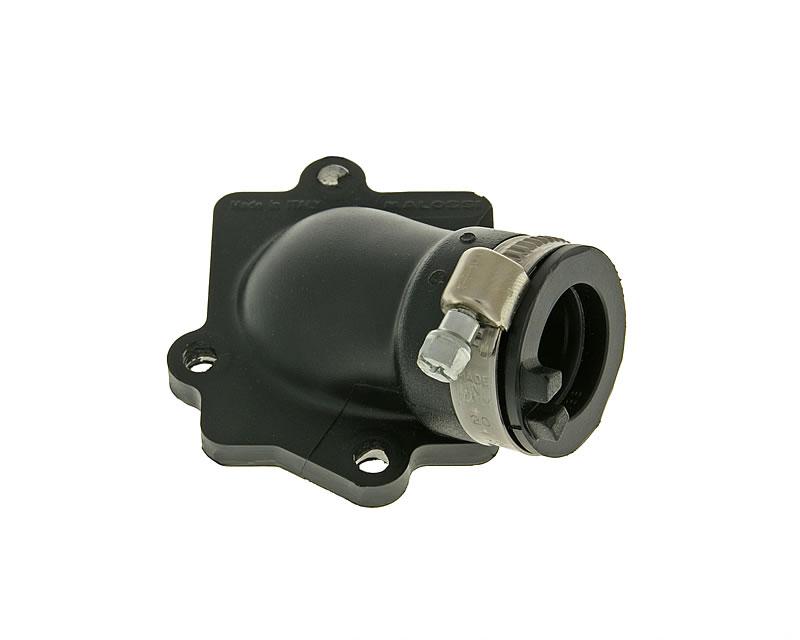

Intake manifold Malossi NBR 21/23 mm – Minarelli horizontal / CPI / Keeway / 1E40QMB

Quality intake manifold Malossi is intended for scooters with Minarelli horizontal and compatible CPI, Keeway and 1E40QMB 2T engines.

The manifold has a short design and an angled connection, allowing compact carburettor installation. The 21/23 mm version is also suitable for configurations where you want to retain the original airbox.

It is made from quality NBR rubber, resistant to fuel and conditions typical of the intake system.

Technical specifications

• Manufacturer: Malossi
• Type: intake manifold / intake flange
• Material: NBR rubber
• Inner opening diameter: Ø21 mm
• Carburettor connection: Ø23 mm
• Inner diameter on the inlet side: Ø24.5 mm
• Short design
• Angled carburettor connection
• Suitable for use with the original airbox

Suitable for carburettors

Suitable for installation of various carburettors:

• Dell’Orto PHBG
• Dell’Orto PHBN
• Dell’Orto PHVA

with the corresponding connection diameter.

Suitable for engines

• Minarelli horizontal 2T
• CPI 2T
• Keeway 2T
• 1E40QMB

NBR version

This is the NBR version of the intake manifold. Malossi also offers these manifolds in a Viton/FKM version, intended primarily for use under higher temperature loads.

Note

Before ordering, check the carburettor connection diameter and intake system version, as the manifold must match the actually installed carburettor.
